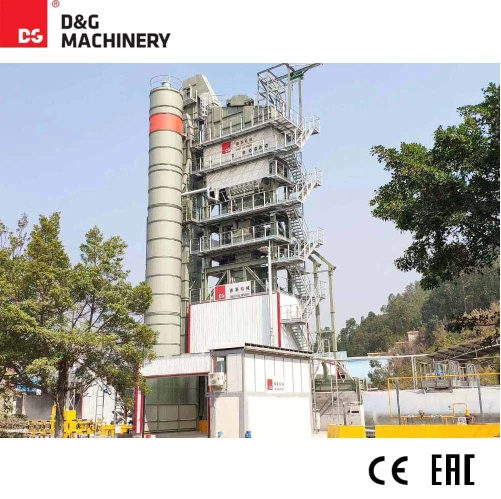

D&G Standard Series DG4000T280 320t/h hot mix plant




Categories | D&G Standard Series |
---|---|
Album | View larger image |
Brand | D&G |
Model | DG4000T280 |
Rate capacity | 320T/H |
Installed power | Appr. 812kW (Standard Configuration) |
Warranty | 1 Year |
Condition | New |
Color | According to Customer' Request |
Application | Construction Industry |
Burner | Oil/gas/coall |
Capacity | 100-400t/h |
FOB port | TIANJIN |
Terms of Payment | L/C, T/T |
Download DOC | ![]() |
Update Time | 2021-03-04 |
Detail Information
TECHNICAL DATA
MODEL |
DG4000T280D |
||
Rated Production Capacity | 320 t/h | ||
Cold Feeder Bin | Number × Volume | 6 × 18 m³ | |
Dryer Drum | Diameter Ø | ø 2.8 m | |
Length | 12 m | ||
Fuel Type | Diesel / Heavy Oil / Nature Gas / LPG / Coal | ||
Drying Capacity | |||
– Moisture Content 3% | 390 t/h | ||
– Moisture Content 5% | 320 t/h | ||
Bag House | Dust Filtering Method | (1st Stage) Pre-separator + (2nd Stage) Bag Filtering House | |
Main Power | Screening | 6 | |
Screening Area | 58.7 m² | ||
Hot Bin Quantity | 5 + 1 | ||
Hot Bin Overall Volume | 75 m³ | ||
Aggregates Weighing | 4200 kg | ||
Filler Weighing | 500 kg | ||
Bitumen Weighing | 500 kg | ||
Mixing Power | 2 × 55 kW | ||
Mixing Capacity | 4200 kg | ||
Filler Scaling & Feeding | Vari-Frequency Screw, Compelled and Well-Distributed Feeding Design. | ||
Bitumen Scaling & Feeding | Dynamic 2-Stage Measurement, High Pressure Uniformly Spray. | ||
Mixing |
2 Horizontal Mixing Shafts, Dual-Motor Driven with Synchronous Reducer. |
||
Hot Mix Storage Bin Type | Under Mixer | ||
Hot Mix Storage Bin Capocity | (35 + 35)70 m³ | ||
Control System |
• DGLeap Control System 2.0ontrol System 2.0 • Large Screen Industrial Computer • PLC Touch Screen HMI • Laser Printer • Air-Conditioned Control Cabin |
||
Environment Index |
• Dust Density⩽20mg/Nm³ • Ringelmann Blackness Class 1 • Noise in Control Cabin ⩽70dB |
||
The above specifications are for reference only. D&G Machinery reserves the right to make changes in engineering, design and improvement at any time without prior notice or obligation. |
