PRIMACH Series PM80M 80t/h mixer: 1.0t compulsory mobile cold mix asphalt plant

PRIMACH Series PM80M 80t/h mixer: 1.0t compulsory mobile cold mix asphalt plant

PRIMACH Series PM80M 80t/h mixer: 1.0t compulsory mobile cold mix asphalt plant
CategoriesStone Crushing Plant
BrandD&G Asphalt Plant Manufacturer
Applicable IndustriesConstruction Works, Manufacturing Plant
Marketing TypeNew Product
Place of OriginHebei,China
CertificationCE
After-sales ServiceOn site
ConditionNew
Machinery Test ReportAvailable
Warranty of core components1 Year
BurnerGas
FOB portTIANJIN
Terms of PaymentL/C, D/A, D/P, T/T
Update TimeMar 28,2024
Detail Information
SPECIFICATION
MODEL
PM100M
Reted Production Capacity
100 t/h
Cold Feeder System
Cold feeder bin
6.5 m³ x 4
Extracting Belt Conveyor
2.8-60 t/h
Collecting Belt Conveyor
120 t/h
Mobile Unit
Single Axle
Drying System
Dryer Drum Capacity
120 t/h (5% Moisture Content)
Dryer Drum Size
Ø 1.5 m x 6.5 m
Burner
Diesel / Heavy Oil / Natural Gas / Coal
Mobile Unit
Double Axle
Dust Collecting and Filtering System
Filterling Type
● (1st Stage) Pre-separator   ● (2nd Stage) Bag Filter
Filtering Surface
360 ㎡
Exhaust Fan Capacity
29,976 Nm³/h
Mobile Unit
Double Axle
Screening-Weighing-Mixing System
Screening
4 Decks
Screen Surface
Hot Bin Quantity
4
Aggregate Weighing Capacity
1,300 kg
Filler Weighing Capacity
130 kg
Bitumen Weighing Capacity
130 kg
Mixer Capacity
1,300 kg
Mobile Unit
Double Axle
Bitumen Heating & Storage System
Bitumen Tank
                                       ● Horizontal Type
                                       ● 30,000 L
Heating Method
Electrical Heating
Hot Oil Boiler(Optional)
Diesel Burner to Heat Hot Oil
Filler Storage & Feeding System
Single Filler Silo(Optional)
30 m³
Hot Mix Storage System
Optional(Optional)
                        ● By Side Type
                        ● 30 m³
Fuel Storage & Feeding System
Fuel Tank(Optional)
                        ● Horizontal Type
                        ● 20,000L Diesel Tank
                        ● 20,000L Heavey Oil Tank
Control System
Standard
                        ● Fully Computerized Automatic Control
                        ● LEAP Control System
                        ● Air-Conditioned Control Cabin
Mobile Unit
Single Axle
Environment Index
                        ● Dust Density ≤ 50 mg/Nm³
                        ● Cabin Noise ≤ 70 dB
                        ● Ringelmann Blackness Class Ⅰ
Note:
● Bitumen Tank, Fuel Tank and Filler Silo can be provided with Fixed Type or Mobile Type (Special Trailer with Axle) as per client's request.
● Some specifications / options might not be available in some countries due to local regulations.
● Specifications / options are constantly updated and subject to change.

PRODUCT DISPLAY

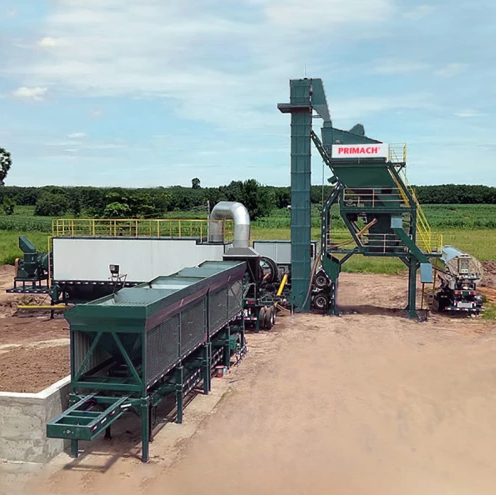

mobile asphalt batch mix plant

SPECIFICATION
MODEL
PM100M
Reted Production Capacity
100 t/h
Cold Feeder System
Cold feeder bin
6.5 m³ x 4
Extracting Belt Conveyor
2.8-60 t/h
Collecting Belt Conveyor
120 t/h
Mobile Unit
Single Axle
Drying System
Dryer Drum Capacity
120 t/h (5% Moisture Content)
Dryer Drum Size
Ø 1.5 m x 6.5 m
Burner
Diesel / Heavy Oil / Natural Gas / Coal
Mobile Unit
Double Axle
Dust Collecting and Filtering System
Filterling Type
● (1st Stage) Pre-separator   ● (2nd Stage) Bag Filter
Filtering Surface
360 ㎡
Exhaust Fan Capacity
29,976 Nm³/h
Mobile Unit
Double Axle
Screening-Weighing-Mixing System
Screening
4 Decks
Screen Surface
Hot Bin Quantity
4
Aggregate Weighing Capacity
1,300 kg
Filler Weighing Capacity
130 kg
Bitumen Weighing Capacity
130 kg
Mixer Capacity
1,300 kg
Mobile Unit
Double Axle
Bitumen Heating & Storage System
Bitumen Tank
                                       ● Horizontal Type
                                       ● 30,000 L
Heating Method
Electrical Heating
Hot Oil Boiler(Optional)
Diesel Burner to Heat Hot Oil
Filler Storage & Feeding System
Single Filler Silo(Optional)
30 m³
Hot Mix Storage System
Optional(Optional)
                        ● By Side Type
                        ● 30 m³
Fuel Storage & Feeding System
Fuel Tank(Optional)
                        ● Horizontal Type
                        ● 20,000L Diesel Tank
                        ● 20,000L Heavey Oil Tank
Control System
Standard
                        ● Fully Computerized Automatic Control
                        ● LEAP Control System
                        ● Air-Conditioned Control Cabin
Mobile Unit
Single Axle
Environment Index
                        ● Dust Density ≤ 50 mg/Nm³
                        ● Cabin Noise ≤ 70 dB
                        ● Ringelmann Blackness Class Ⅰ
Note:
● Bitumen Tank, Fuel Tank and Filler Silo can be provided with Fixed Type or Mobile Type (Special Trailer with Axle) as per client's request.
● Some specifications / options might not be available in some countries due to local regulations.
● Specifications / options are constantly updated and subject to change.
SPECIFICATION
MODEL
PM120M
Reted Production Capacity
120 t/h
Cold Feeder System
Cold feeder bin
8 m³ x 4
Extracting Belt Conveyor
2.8-80 t/h
Collecting Belt Conveyor
140 t/h
Mobile Unit
Single Axle
Drying System
Dryer Drum Capacity
140 t/h (5% Moisture Content)
Dryer Drum Size
Ø 1.8 m x 8.0 m
Burner
Diesel / Heavy Oil / Natural Gas / Coal
Mobile Unit
Double Axle
Dust Collecting and Filtering System
Filterling Type
● (1st Stage) Pre-separator   ● (2nd Stage) Bag Filter
Filtering Surface
510 ㎡
Exhaust Fan Capacity
43,464 Nm³/h
Mobile Unit
Double Axle
Screening-Weighing-Mixing System
Screening
4 Decks
Screen Surface
Hot Bin Quantity
4
Aggregate Weighing Capacity
1,500 kg
Filler Weighing Capacity
150 kg
Bitumen Weighing Capacity
150 kg
Mixer Capacity
1,500 kg
Mobile Unit
Double Axle
Bitumen Heating & Storage System
Bitumen Tank
                                       ● Horizontal Type
                                       ● 40,000 L
Heating Method
Electrical Heating
Hot Oil Boiler(Optional)
Diesel Burner to Heat Hot Oil
Filler Storage & Feeding System
Single Filler Silo(Optional)
30 m³
Hot Mix Storage System
Optional(Optional)
                        ● By Side Type
                        ● 30 m³
Fuel Storage & Feeding System
Fuel Tank(Optional)
                        ● Horizontal Type
                        ● 20,000L Diesel Tank
                        ● 20,000L Heavey Oil Tank
Control System
Standard
                        ● Fully Computerized Automatic Control
                        ● LEAP Control System
                        ● Air-Conditioned Control Cabin
Mobile Unit
Single Axle
Environment Index
                        ● Dust Density ≤ 50 mg/Nm³
                        ● Cabin Noise ≤ 70 dB
                        ● Ringelmann Blackness Class Ⅰ
Note:
● Bitumen Tank, Fuel Tank and Filler Silo can be provided with Fixed Type or Mobile Type (Special Trailer with Axle) as per client's request.
● Some specifications / options might not be available in some countries due to local regulations.
● Specifications / options are constantly updated and subject to change.
SPECIFICATION
MODEL
PM160M
Reted Production Capacity
160 t/h
Cold Feeder System
Cold feeder bin
8 m³ x 4 + 6.5 m³
Extracting Belt Conveyor
2.8-80 t/h
Collecting Belt Conveyor
180 t/h
Mobile Unit
Double Axle
Drying System
Dryer Drum Capacity
180 t/h (5% Moisture Content)
Dryer Drum Size
Ø 2.2 m x 9.0 m
Burner
Diesel / Heavy Oil / Natural Gas / Coal
Mobile Unit
Double Axle
Dust Collecting and Filtering System
Filterling Type
● (1st Stage) Pre-separator   ● (2nd Stage) Bag Filter
Filtering Surface
600 ㎡
Exhaust Fan Capacity
56,452 Nm³/h
Mobile Unit
Double Axle
Screening-Weighing-Mixing System
Screening
5 Decks
Screen Surface
Hot Bin Quantity
5
Aggregate Weighing Capacity
2,000 kg
Filler Weighing Capacity
200 kg
Bitumen Weighing Capacity
200 kg
Mixer Capacity
2,000 kg
Mobile Unit
Double Axle
Bitumen Heating & Storage System
Bitumen Tank
                                       ● Horizontal Type
                                       ● 40,000 L
Heating Method
Electrical Heating
Hot Oil Boiler(Optional)
Diesel Burner to Heat Hot Oil
Filler Storage & Feeding System
Single Filler Silo(Optional)
30 m³
Hot Mix Storage System
Optional(Optional)
                        ● By Side Type
                        ● 30 m³
Fuel Storage & Feeding System
Fuel Tank(Optional)
                        ● Horizontal Type
                        ● 20,000L Diesel Tank
                        ● 20,000L Heavey Oil Tank
Control System
Standard
                        ● Fully Computerized Automatic Control
                        ● LEAP Control System
                        ● Air-Conditioned Control Cabin
Mobile Unit
Single Axle
Environment Index
                        ● Dust Density ≤ 50 mg/Nm³
                        ● Cabin Noise ≤ 70 dB
                        ● Ringelmann Blackness Class Ⅰ
Note:
● Bitumen Tank, Fuel Tank and Filler Silo can be provided with Fixed Type or Mobile Type (Special Trailer with Axle) as per client's request.
● Some specifications / options might not be available in some countries due to local regulations.
● Specifications / options are constantly updated and subject to change.
