DG Asphalt Mixing Plants

DG Asphalt Mixing Plants

DG Asphalt Mixing Plants
DG Asphalt Mixing PlantsDG Asphalt Mixing PlantsDG Asphalt Mixing PlantsDG Asphalt Mixing PlantsDG Asphalt Mixing Plants
CategoriesBatch Type AMP
BrandD&G Asphalt Plant Manufacturer
ModelDG1300PM-DG5000
Rated capacity105t/h-400t/h
Dust collectorPrimary gravity+ Bag filter
Place of originChina
ColorCustomization
Terms of PaymentL/C, T/T
Download DOC
Update Time2022/10/4
Detail Information
  • Product Features
  • Product Parameters
  • Download Document
DG Asphalt Mixing Plants105t/h-400t/h

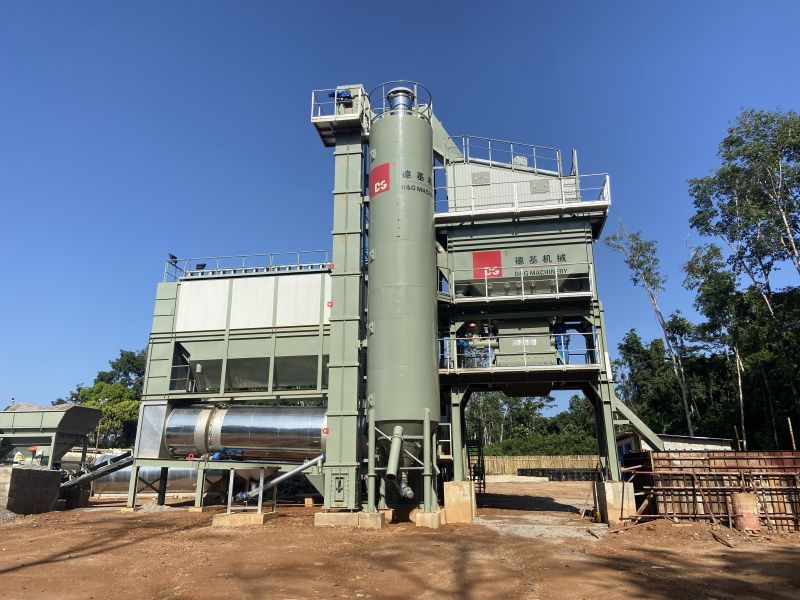

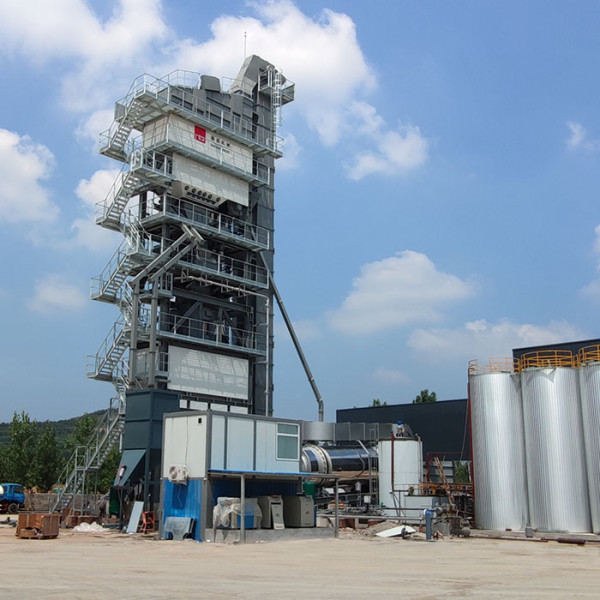

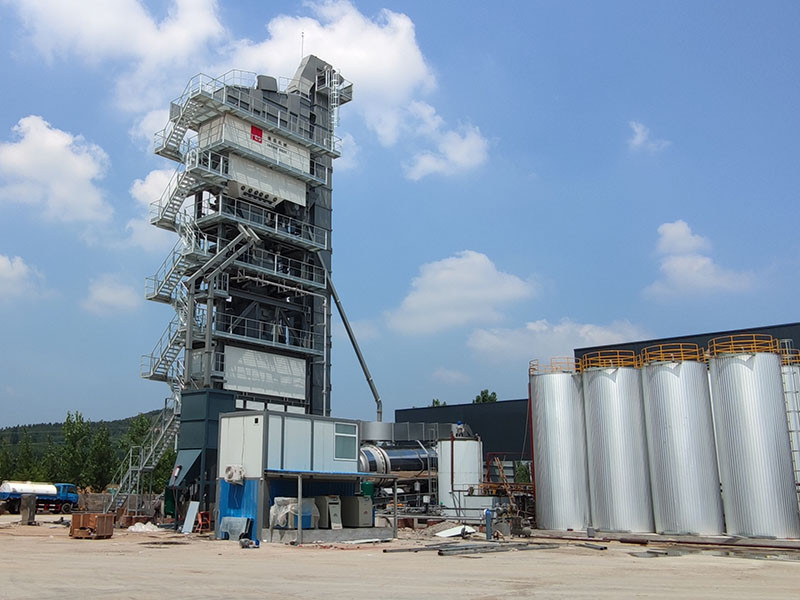

D&G batch type asphalt plant has complete product lineup including stationary, mobile asphalt batch mix plant and continuous drum mix plant. Thanks to the compact design it can be proper for some tight space with fully functions. Accurate control system, fast responding active and stable quality can satisfy almost all customer's need in more economical way.  It designed and manufactured in accordance with Europe quality standard with CE&EAC certification. The plants adopted the top-class components to ensure the running stability and long service life.

Product Features:

1.Top Class Components

For assure the stable and service life of asphalt plant, D&G selected the most famous brand for key components supplier. There are ROSSI MotorIduttori, SIEMENS, SKF, WAMGROUP, ABS and others prestigious supplier included in our supply chain. We always keep pace with the international advanced technology.
Abs-Burner
NORGREN-Pneumatic Elements

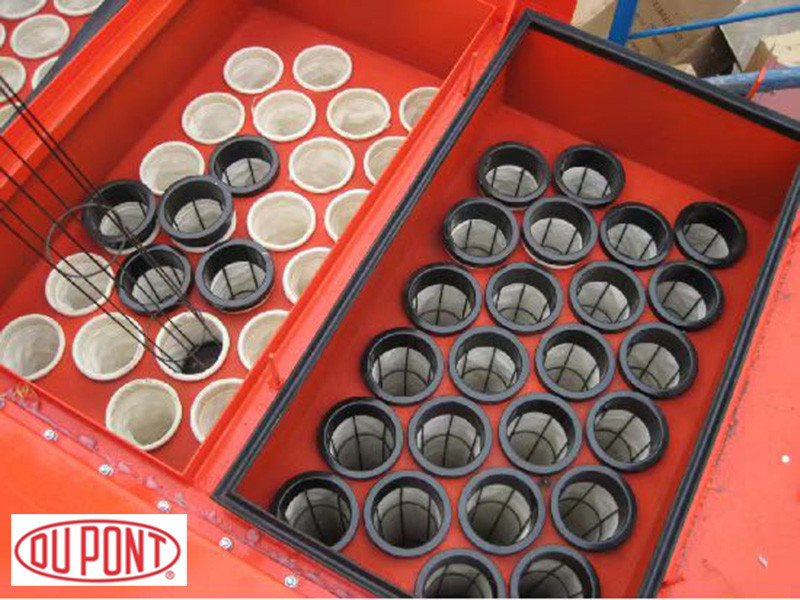

Dupont-Bag Filter
HARDOX- Dryer Drum

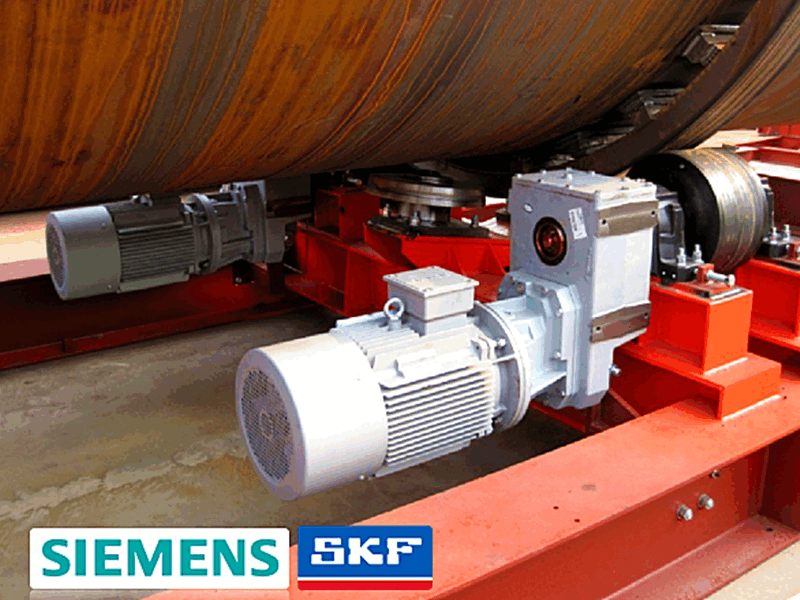

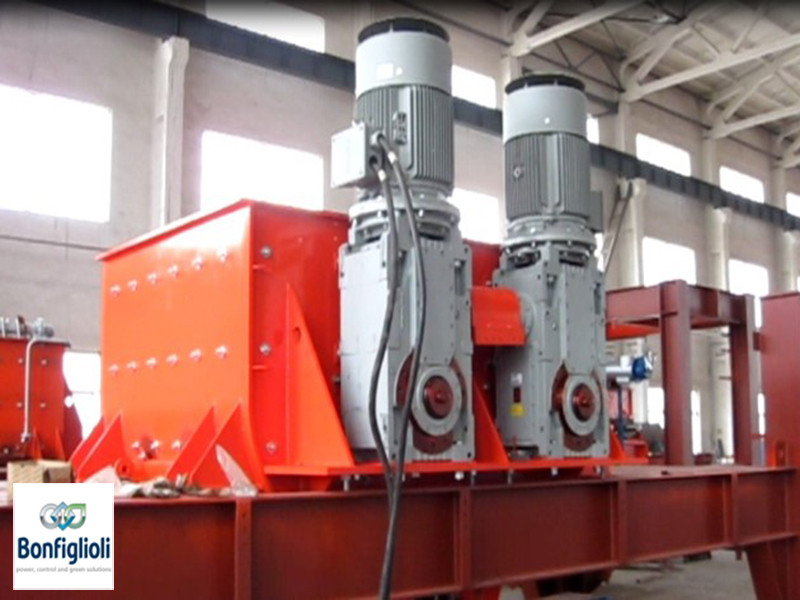

Bonfiglioli-Reducer
SIEMENS-Motor
2.Easy to Setup and Relocate

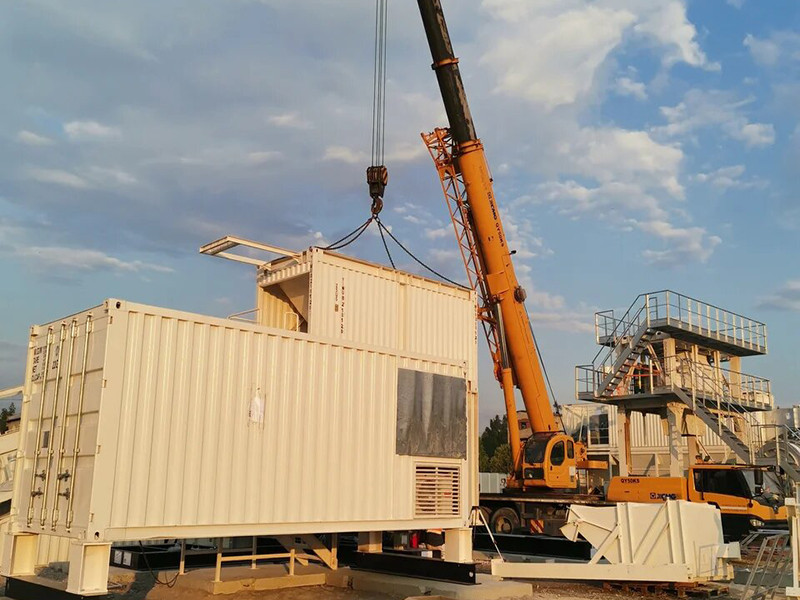

Each asphalt mixing plant is designed and built in modular format. The size and weight of each module are within the limits of a standard sized container. Quick installation and delivery. Therefore, the requirement on lifting, hoisting equipment for assembly and disassembly is more flexible. In addition, each asphalt mixing plant module can be transported using standard sized trailer which is commonly available at low cost.
3.High Productivity

Because of the sufficient capacity of drum\vibrator\mixer, the plant can reach normal productivity easily and even can get more productivity if have the proper raw material supply.
Mixing Tower:

Drying System:

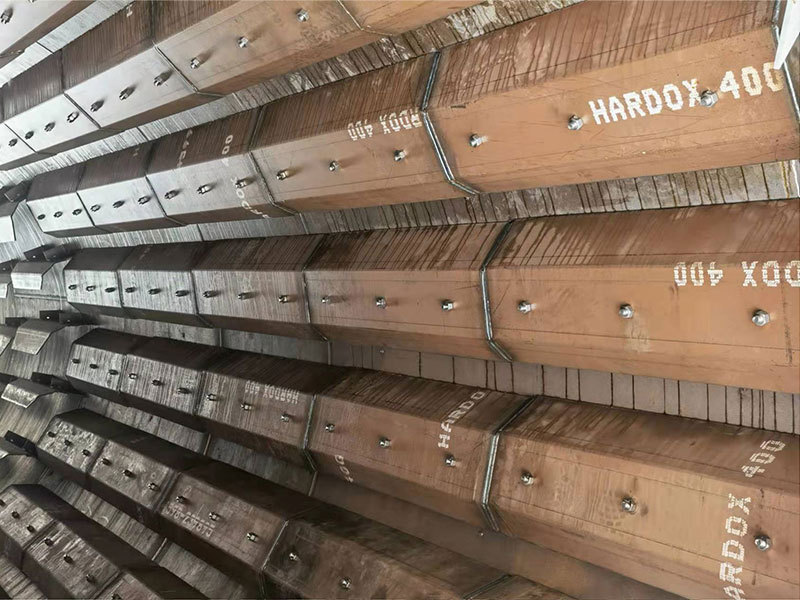

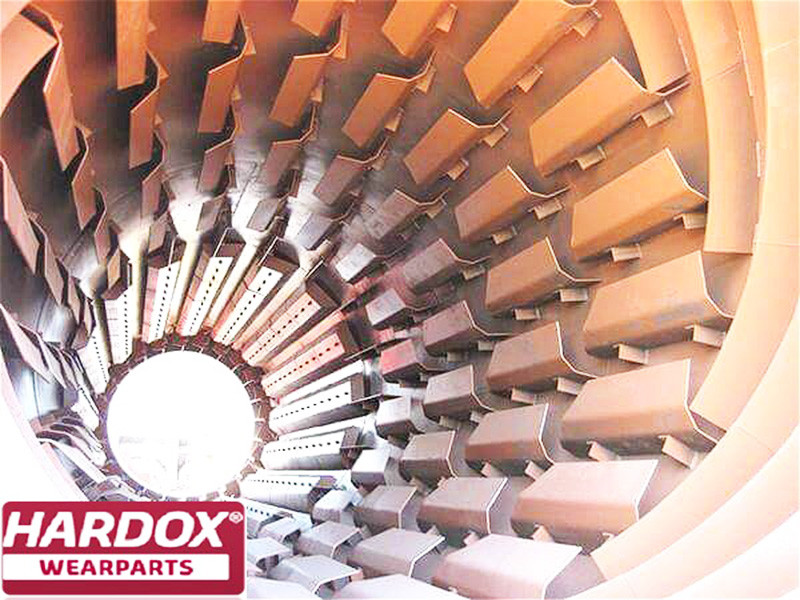

 The drum flights are applied in HARDOX high strength wear-resistance steel to prove long service time.
 Employing thermal insulating rock wool material that can keep the energy inside, reducing heat loss.
 Multiple-function ABS burner, kinds fuel (gas, oil, diesel, coal) can be chose as required.
4.Customization

Customers can get professional consultation from initial project to model selection phrase from D&G machinery. We provide flexible customized options which can meet various needs of customer.
5.Accurate Measurement

D&G self-developed know-how "AIntelligent bitumen measurement system" ensure the pre-set recipe can be implement with minimum deviation value. In the meantime, the waste of bitumen and other materials are eliminated.
The aggregate weighing hopper
Secondary Intelligent Bitumen Measurement System
 Metallic base (optional) and modular assembly with no cement foundation required shortens the erection time, occupying less area and enabling a more convenient dismantle and transfer
 The aggregate weighing hopper is controlled by a double–stroke cylinder, and provides the function of an advanced, fully computerized and automatic falling impact compensation. The filler weighing hopper is controlled by a frequency metering screw while the bitumen weighing hopper is controlled by dynamic calculation and is able to achieve the secondary measurement. Asphalt mixing plants of D&G Machinery are installed with a weighing and metering control system which is very precise and with a high weighing accuracy, enabling strict compliance with the required bitumen-to-aggregate ratio.
6.Smart Control System

The system configured with Siemens PLC which have 2 cabling configuration options: PROFI-bus and distributed control system. Both mode can assure the signal feedback in Real time without lag off.
Product Parameters

MODEL-DG Series
DG1300PM
DG1500PM
DG2000PM
DG3000
DG4000
DG5000
Rated Production Capacity
105t/h
125t/h
160t/h
240t/h
320t/h
400t/h
Cold Feeder Bin
6.5m³ x 4
8m³ x 4 or 5
8m³ x 5 or 6
5  x 18 m³
6  x 18 m³
6  x 18 m³
Dry Drum Size
Ø 1.8m x 8 m
Ø 1.9m x 8 m
Ø 2.0m x 8.5m
Ø 2.5m x 9m
Ø 2.8m x 12m
Ø 3.0m x 12m
Dust Collector
Primary gravity+ Bag filter
Screen
4
4 or 5
5 or 6
5 or 6
6
6
Screening Area
14.88 ㎡
13 ㎡
20 ㎡
38.4 ㎡
58.7 ㎡
69 ㎡
Hot Bin Volume
18.2 m³
14 m³
20 m³
45 m³
75 m³
80 m³
Mixer Capacity
1300kg
1550kg
2000kg
3300kg
4200kg
5500kg
Control System
DG Leap + PLC
Emission Rank
● Dust Density ≤ 20 mg/Nm³
● Cabin Noise ≤ 70 dB
● Ringelmann Blackness Class Ⅰ
Note:
● Some specifications / options might not be available in some countries due to local regulations.
● Specifications / options are constantly updated and subject to change.
Download document
DG PRIMACH Series 105t/h-160t/h Catalog
DG Series 240t/h-400t/h Catalog
