Additive Injection System

Additive Injection System
CategoriesAdditive Injection Systems
BrandD&G Asphalt Plant Manufacturer
ModelMultiple Models
Rated capacity26 KW, 380V AC
Size181cm*118cm*176cm
Weight1.2T
Capacity of weighing hopper0.6m³
Dosing tolerance<1.2%
Head of lift>20m
FOB portTIANJIN
Terms of PaymentL/C, T/T
Download DOC
Update Time2022/10/4
Detail Information

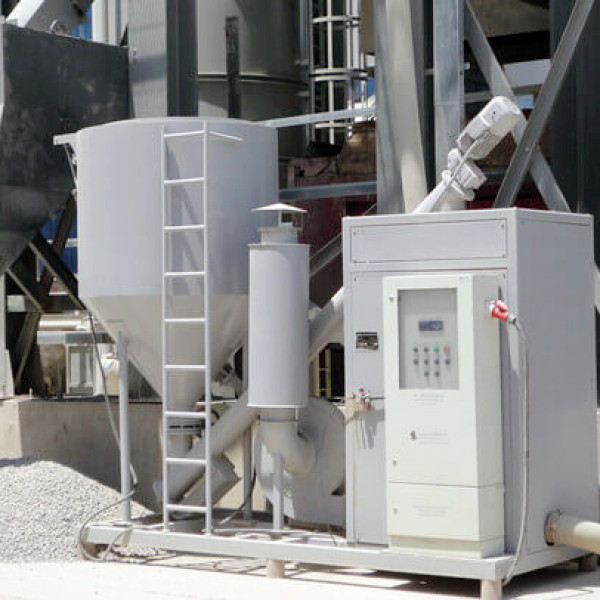

Additive Injection System

This equipment adopts the advanced CB4 weighing display and Siemens PLC, to add the anti-rutting pellet as well as xylem fiber. This device will start after get the signal from the controlling system, auto weighing, dosing and adding for the pellet, and integrated with automatic protection and alarm for the working failure. The dosing tolerance is 1.2 percent, with function of internet connection, printing, disc saving. This system has advantages of working stable, dosing accurate and easy to operating.

Product Features:

1. Main Components

Dosing system: with the display, dosing unit, weighing cell, coarse pellet separating device (include 1.5 KW motor, reducer, discharge winch), fine pellet discharging device integrated with 1.5KW motor, reducer and winch.
Conveying system: pellet feeding with 4KW motor and inlet seal, high pressure fine with 15 KW motor and pump, separating motor 4KW and conveying hose.
2. Effective Communication

Any inquiry will be fast replied. Accurately convey customer's information.
3.Products Quality

Our devices are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can use Trade Assurance for product quality protection, on-time shipment protection and payment protection..
Product Parameters

Rated Capacity
26 KW, 380V AC
Size
181cm*118cm*176cm
Weight
1.2T
Capacity of Weighing Hopper
0.6m³
Dosing tolerance
<1.2%
Head of lift
>20m
Capacity of lift pelletized filer
1-2kg   xylem 1.5~2.5Kg
