Emulsion Bitumen System

Emulsion Bitumen System
Emulsion Bitumen SystemEmulsion Bitumen System
CategoriesEmulsion Bitumen Systems
BrandD&G Asphalt Plant Manufacturer
ModelMultiple Models
Output6 t/h
Fineness2-5 μm
Bitumen range of content6.6×2.2×2.53 m
Water heatingConduction oil indirect heating
Water tank volume3.8 m³
Mix tank volume1.4 m³
FOB portTIANJIN
Terms of PaymentL/C, T/T
Download DOC
Update Time2022/10/4
Detail Information

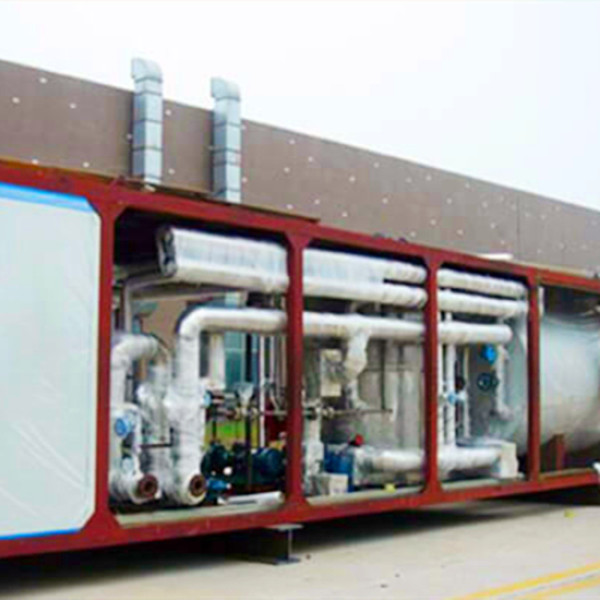

Emulsion Bitumen System

The main function of bitumen emulsion system is that the melted asphalt goes through the emulsifier and the mechanical action to form an emulsion asphalt, it can be uniformly dispersed in an aqueous solution containing an appropriate amount of emulsifier. The device has advanced production technology, convenient operation, accurate ratio and good emulsification quality. It has the characteristics of long service life, compact structure, easy installation and relocation, and are widely used in road construction and asphalt mixing plant operation.

Product Features:

1.Modular Design


Integrated modular design makes it easy for installation, moving, transportation and relocation. The structure design of our device fits container transportation standards, compact design and container type, loading into one 40HQ container, it is suitable for shipping by sea or by truck, so it greatly reduces the transportation cost and risk, suitable for exportation.

2.Core Component


The core component of emulsifier, combining high-speed shearing and grinding with the most advanced technology in the world, and adopts a unique stator and rotor gap adjustment structure to maintain a minimum stable clearance. Material is special stainless steel, which is anti-corrosion, wearing, and the emulsification fineness is <5μm.

3.More Accurate and Flexible


Accurate computer control to ensure minimum tolerance of recipe. Adopt automatic control system and automatic monitor, and can also flexibly adjust proportion additives. Mix proportion can be set within a range 10%-70%.

4.Automatic Control System


Automatic control system, including all parameters setting of oil/water ratio productivity, alarming and sensor correct etc. The control system is easy to study and manipulate. Given touch screen human-machine interface.

5.Good Material Properties

All materials in contact emulsions are made of stainless steel, has a strong resistance to corrosion, can be applied to different types of emulsified asphalt production

Product Parameters

Item
Unit
Parameter
Remarks
Main function
Modified /normal bitumen emulsion
Output
t/h
6
Fineness
μm
2-5
Bitumen range of content
%
10-70
Dimension
m
6.6×2.2×2.53
Container design
Water neating
Conduction oil indirect heating
Conduction oil outside
Water tank volume
3.8
Mix tank volume
1.4
Per tank
Bitumen pump flow
m³/h
5
Total power
kw
<32
Power supply requirements
380 V 50 Hz AC power supply
Copper Wire with 50m Cable>25m㎡
Conduction oil temperature
200-250
Oil exchange surface in water tank
7.15
40m (м)
Conduction oil volume
0.08
0.11
0.11
Temperature tolerance
<1℃
Content tolerance
%
<1%
