Warm Mix Asphalt Foaming Device

Warm Mix Asphalt Foaming Device

Warm Mix Asphalt Foaming Device
Warm Mix Asphalt Foaming DeviceWarm Mix Asphalt Foaming Device
CategoriesWarm Mix Asphalt Foaming Device
BrandD&G Asphalt Plant Manufacturer
ModelFB30
Size(LxWxH)900x500x1000mm
Bitumen rated flow36-120 m3/h
Foam mediumWater
TemperatureAppr.160℃
Water pump ratd flow30 L/min( adjustable frequency )
Water contentOrdinary:1-3%, modified:2-4%
FOB portTIANJIN
Terms of PaymentL/C, T/T
Update TimeMar 29,2024
Detail Information
Warm asphalt foaming device working flow D&G Machinery
Warm Mix Asphalt Foaming Device

Warm mix asphalt foaming device is consisted of foaming unite, water dosing and supply unit, water replenishing unit, and controlling system. It has lots of the advantages compare with the normal mix bitumen. Foaming bitumen can be used 50-60° lower than the hot mix bitumen, which means the cost reduce and less pollutant emission. After the mix of the foaming medium (water or vapour) and the high temperature liquid bitumen. The asphalt viscosity will be decrease and the volume will be expanding rapidly. This expansion is purely physical processed and the chemical property of the bitumen won’t be changed at all.

Product Features:

1. Lower Temperature Operation

Greatly reduce the hot mix temperature (30-50°). It minimizes the mixing and paving temperature and the smoke and odour emissions are greatly improved. In additional, it creates friendly working conditions for the asphalt workers.
2. Economy Benefit

It can reduce 30% fuel consumption and increase the proportion of recycled asphalt added (if have).
3. Environmental Protection

With WMA the emission of pollutant smoke is greatly improved. Including CO / CO2, SO2/NOX etc. Lower mixing and paving temperature will result in reduced greenhouse gas emissions.
4. Good Mixture Performance

For assure the stable and service life of this device, we select the most famous brand to supply the key components. D&G MACHINERY always keep pace with the international advanced technology.
5. Reliability
For assure the stable and service life of this device, we select the most famous brand to supply the key components. D&G MACHINERY always keep pace with the international advanced technology.

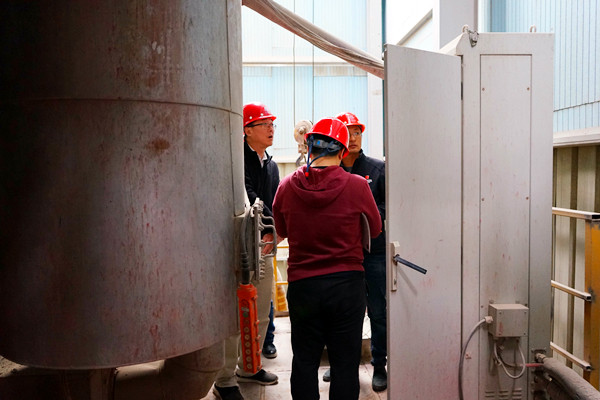

Field Case :

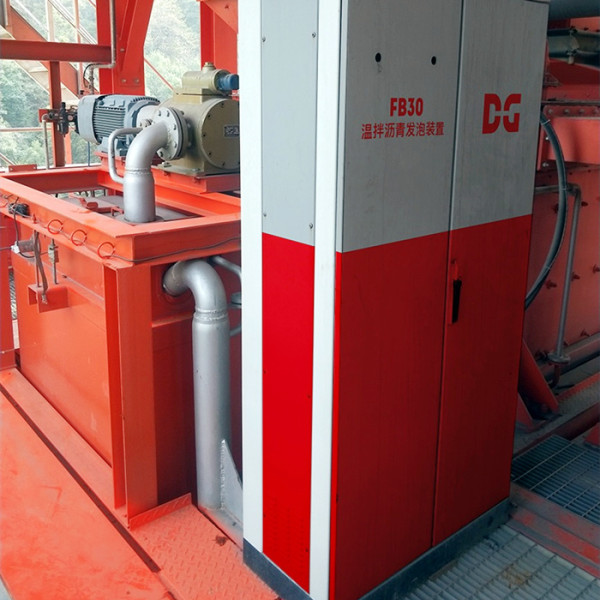

Warm asphalt foaming device China manufacturer D&G Machinery

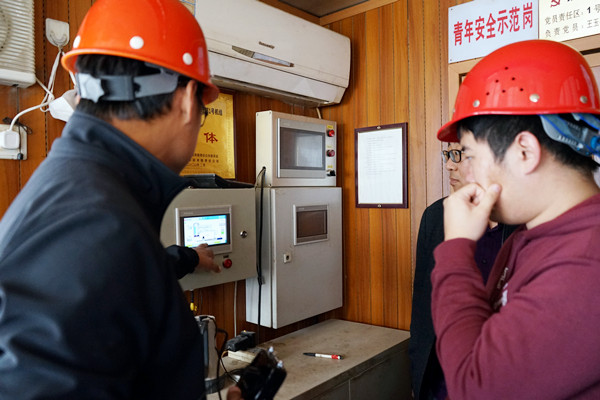

Warm asphalt foaming device control system dgleap manufacturer China
Product Parameters

Model
FB30
Size(LxWxH)
900x500x1000mm
Bitumen Rated Flow
36-120 m³/h
Foam Medium
Water
Temperature
Appr.160℃
Water Pump Ratd Flow
30 L/min( adjustable frequency )
Water Content
Ordinary:1-3%, modified:2-4%
Water Pressure
Appr. 1.6 Mpa
Volume of Heat Water Tank
175L
Total Power
2.05kw
