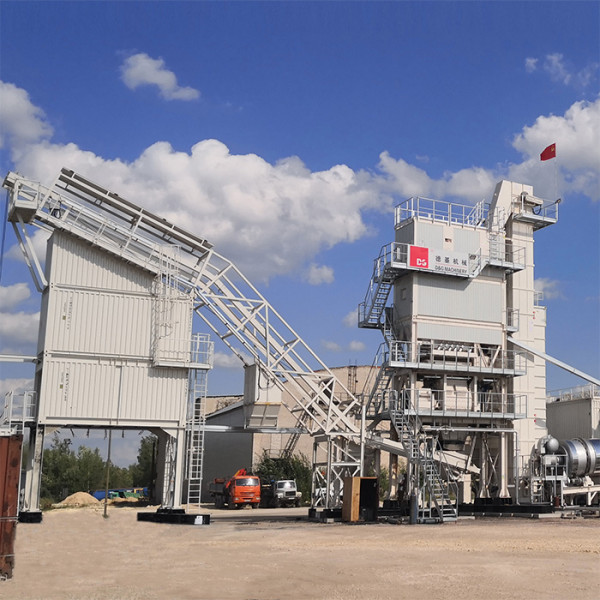

DGC Asphalt Mixing Plant

DGC Asphalt Mixing Plant
DGC Asphalt Mixing PlantDGC Asphalt Mixing PlantDGC Asphalt Mixing PlantDGC Asphalt Mixing PlantDGC Asphalt Mixing Plant
CategoriesSOC Batch Asphalt Mixing Plant
BrandD&G Asphalt Plant Manufacturer
ModelDGC1500-DGC3000
Dust CollectorPrimary gravity+ Bag filter
Control SystemDG Leap + PLC
Place of OriginChina
Total Power420-500 KW
Transport and InstallationContainerised Series with quick erection
FOB portTIANJIN
Terms of PaymentL/C, T/T
Update TimeMar 29,2024
Detail Information
  • If you are planning to establish an asphalt mixing plant and would like to know about cost budgeting and how to select and price asphalt mixing plants, we will provide you with more technical support regarding the early stages of your asphalt mixing plant. Additionally, if you wish to become a distributor of D&G's localized asphalt mixing plant, we will offer you more support to expand your local market. Contact us now for more information about D&G machinery asphalt mixing plant consultations.
DGC asphalt mixing plant compact series China
DGC Asphalt Mixing Plant140t/h-240t/h

DG asphalt mixing plant is specialized for the export case that take by sea freight transport. The mix tower and bag house as well as the control room are designed in shipper owned container (SOC)model so that the delivery cost is greatly saved. Besides the feature for easy transport, it keeps the high end produce performance and components select are same to D&G standard series.

DGC Asphalt Mixing Plant Features:
1.SOC (Shipper Owned Container)

The plant is designed in modular concept, we considered about the cost of sea freight and relocation chance in practice case. Foldable handrails &platforms and stairs are integrated with each module. Every module of the equipment is designed in SOC or can be put into 40 feet’s container. For transport locally, every module of plants can be taken by a 16m trailer.
With individual elements precisely selected and professionally configured for shipping container housings, the DG Compact minimizes transportation costs for customers. This design is perfectly integrated into D&G’s core features to guarantee a truly high level of productivity and hassle-free maintenance. Installation and relocation of the plants become further simper and quicker.
SOC asphalt mixing plants mixing tower D&G Machinery
Mixing Tower
DG compact bitumen storage and heating system
Bitumen Storage and Heating System
SOC asphalt mixing plant hot aggregate bin China D&G Machinery

Hot Aggregate Bin

DGC asphalt batch mix plants mixer D&G Machinery

Mixer

DGC Asphalt Mixing Plant Parameters

SPECIFICATION
MODEL-DGC Series
DGC1500AC
DGC2000AC
DGC2500AC
DGC3000AC
Rated Production Capacity
140t/h
160t/h
200t/h
240t/h
Dry Drum Size
Ø 1.9m x 9 m
Ø 2.0m x 9 m
Ø 2.2m x 9 m
Ø 2.5 x 9 m
Dust Collector
Primary gravity+ Bag filter
Screen
6
6
6
6
Hot Bin Volume
21 m³
21 m³
40 m³
40 m³
Mixer Capacity
1500kg
2000kg
2500kg
3000kg
Mixer Drive Device
Twin-Shafts/ Gear motors
Control System
DG Leap + PLC
Emission Rank
● Dust Density ≤ 20 mg/Nm³
● Cabin Noise ≤ 70 dB
● Ringelmann Blackness Class Ⅰ
Note:
● Some specifications / options might not be available in some countries due to local regulations.
● Specifications / options are constantly updated and subject to change.
DGC Asphalt Mixing Plant Components

DGC Asphalt Mixing Plant Components D&G Machinery China
DGC Asphalt Mixing Plant Components

1. Cold feeder system
2. Drying and heating system
3. Dust collecting system
4. Filler system
5. Mixing tower system
6. Hot mix storage bin system
7. Bitumen storage and heating system
DGC asphalt mixing plant Cold Feeder System
1. DGC Asphalt Mixing Plant - Cold Feeder System

1) Adds grid plate at top of each hopper it can screen oversize aggregates.

2)Steel base design, requires no civil foundations (optional).

DGC asphalt mixing plant Mixer
2. DGC Asphalt Mixing Plant - Mixer

1) Shipper owned container(SOC) modular design. CSC CERTIFICATE

2) Reduce erection cost.

3) With famous transmission components.

DGC asphalt mixing plant drying system
3. DGC Asphalt Mixing Plant - Drying System

1) The rolling rings and rollers are applying high strength wear-resisting material.

2) The cylinder adopts stainless steel plate, which gives it high temperature resistance and non-deformability.

3) The drum flights are applied in HARDOX high strength wear-resistance steel to prove long service time.

DGC asphalt mixing plant Dust Collecting System
4. DGC Asphalt Mixing Plant - Dust Collecting System

1) Two stage dust filtration system: primary gravity+ bag filter.

2) Low emission. Ringelmann Blackness ClassⅠ.

DGC asphalt batch mix plants Control System
5. DGC Asphalt Mixing Plant - Control System

1) "DG LEAP" Automatic and manual control can be switched.

2) System configured with Siemens PLC.

DGC asphalt mixing plant Bitumen Tank
6. DGC Asphalt Mixing Plant - Bitumen Tank

1) Circulating pump to control the bitumen flow.

2) Quantity of bitumen tank is changeable.

3) Electric heating tank is optional.
