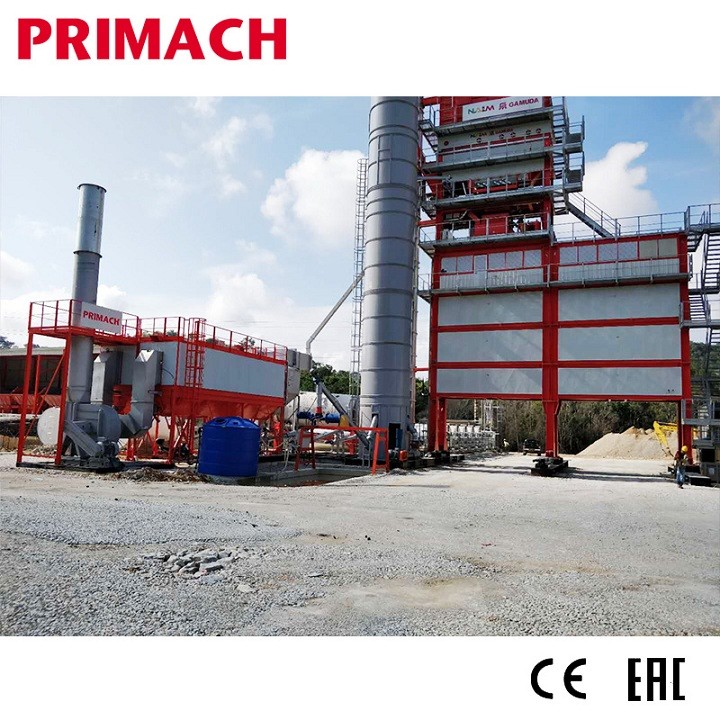

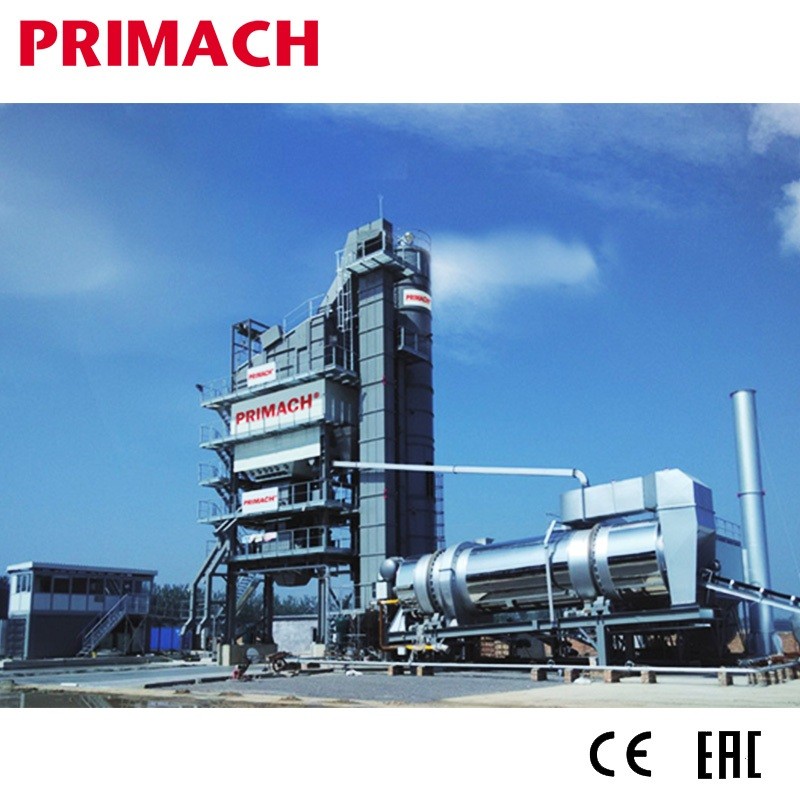

PM240 240T/H batch type RAP asphalt batch mix plant

PM240 240T/H batch type RAP asphalt batch mix plant

PM240 240T/H batch type RAP asphalt batch mix plant
PM240 240T/H batch type RAP asphalt batch mix plantPM240 240T/H batch type RAP asphalt batch mix plantPM240 240T/H batch type RAP asphalt batch mix plant
CategoriesBatch Type Asphalt Mixing Plant
AlbumView larger image
BrandD&G
ModelPM240
Rated capacity240T/h
FuelOil / Natural Gas / Coal powder
After service7x24 special service team
EmissionRingelmann Blackness Class Ⅰ
Place of productionLangfang city, Hebei, China
Original countrySingapore
FOB portTIANJIN
Terms of PaymentL/C, T/T
Download DOC
Update Time2021-01-17
Detail Information
SPECIFICATION
MODEL
PM240
Rated Production Capacity
240 t/h
Cold Feeder System
Cold feeder bin
18 m³ x 5 or 6
Extracting Belt Conveyor
2.8-140 t/h
Collecting Belt Conveyor
310 t/h
Drying System
Dryer Drum Capacity
● 300 t/h (3% Moisture Content)
● 240 t/h (5% Moisture Content)
Dryer Drum Size
Ø 2.5 m x 9.0 m
Burner
Diesel / Heavy Oil / Natural Gas / Coal
Dust Collecting and Filtering System
Filterling Type
● (1st Stage) Pre-separator   ● (2nd Stage) Bag Filter
Filtering Surface
796 ㎡
Exhaust Fan Capacity
80,000 Nm³/h
Screening-Weighing-Mixing System
Aggregate Elevator Capacity
270 t/h
Filler Elevator
27 t/h
Screening
5 or 6 Decks
Screen Surface
28.1 / 38.36 ㎡
Hot Bin Quantity
5+1 or 6+1
Hot Bin Volume
40 / 45 ㎡
Aggregate Weighing Capacity
3,000 kg
Filler Weighing Capacity
400 kg
Bitumen Weighing Capacity
400 kg
Mixer Capacity
3,000 kg
Bitumen Heating & Storage System
Bitumen Tank
                                       ● Horizontal Type
                                       ● 35,000 L
Heating Method
Hot Oil
Hot Oil Boiler
500,000 kCal/h or 750,000 kcal/h
Filler Storage & Feeding System
Single Filler Silo
-
Double Filler Silos
30 m³ + 50 m³
Fuel Storage & Feeding System
Fuel Tank
                        ● Horizontal Type
                        ● 20,000L Diesel Tank
Control System
Standard
                        ● Fully Computerized Automatic Control
                        ● LEAP Control System
                        ● Air-Conditioned Control Cabin
Environment Index
                        ● Dust Density ≤ 50 mg/Nm³
                        ● Cabin Noise ≤ 70 dB
                        ● Ringelmann Blackness Class Ⅰ
Note:
● All Capacities are based on 5% moisture content.
● Some specifications / options might not be available in some countries due to local regulations.
● Specifications / options are constantly updated and subject to change.
