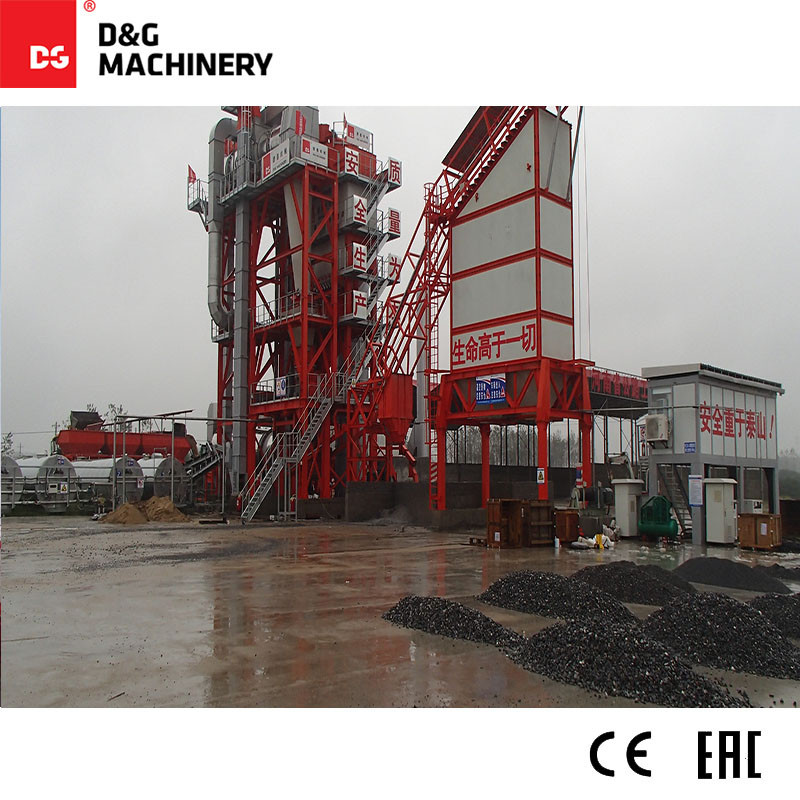

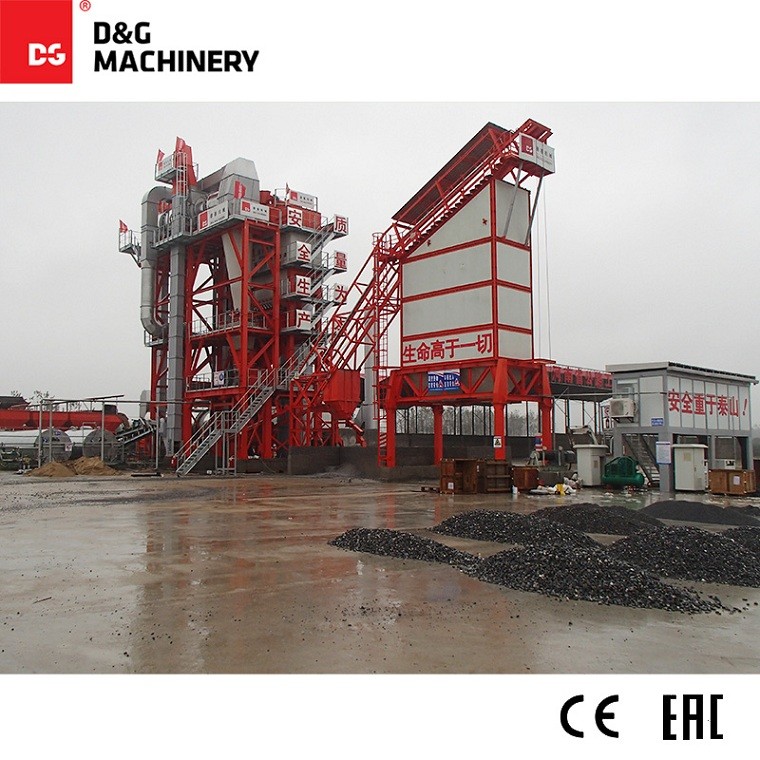

DGR Recycling Series DGR4000T280D 320t/h monoblock recycled asphalt mixing plant

DGR Recycling Series DGR4000T280D 320t/h monoblock recycled asphalt mixing plant

DGR Recycling Series DGR4000T280D 320t/h monoblock recycled asphalt mixing plant
DGR Recycling Series DGR4000T280D 320t/h monoblock recycled asphalt mixing plantDGR Recycling Series DGR4000T280D 320t/h monoblock recycled asphalt mixing plantDGR Recycling Series DGR4000T280D 320t/h monoblock recycled asphalt mixing plantDGR Recycling Series DGR4000T280D 320t/h monoblock recycled asphalt mixing plant
CategoriesStone Crushing Plant
BrandD&G Asphalt Plant Manufacturer
ModelDGR4000T280D
Rated capacity320T/H
RAP porportion60-70%
mixture storageBy side/under mixer
FOB portTIANJIN
Terms of PaymentL/C, D/A, T/T
Update TimeMay 28,2024
Detail Information
TECHNICAL DATA
MODEL
DGR4000T280D
Rated Production Capacity
320 t/h

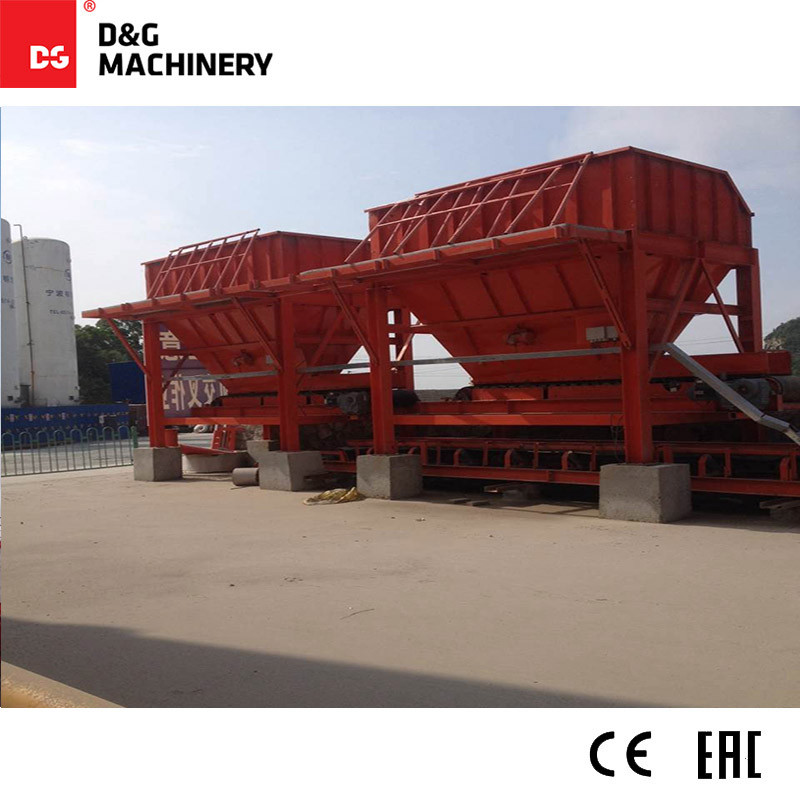

Cold  Feeder Bin
Number × Volume
6 × 18 m³
RAP Cold  Feeder Bin
Number × Volume
3× 12 m³
Dryer Drum
Diameter Ø
ø 2.8 m
Length
12 m
Fuel Type
Diesel Oil/ Heavy Oil / Nature Gas / Coal Powder
Drying Capacity
– Moisture Content 3%
390 t/h
– Moisture Content 5%
320 t/h
RAP Dryer Drum
Diameter Ø
ø 2.2 m
Length
11 m
Fuel Type
Diesel / Heavy Oil / Nature Gas
Drying Capacity
– Moisture Content 3%
160 t/h
– Moisture Content 5%
140 t/h
Bag Filter
Dust Filtering Method
(1st Stage) Pre-separator + (2nd Stage) Bag Filtering House
Mixing Tower
Screening
 6
Screening Area
58.7 m²
Hot Bin Quantity
6 + 1
Hot Bin Overall Volume
75 m³
Aggregates Weighing
5500 kg
Filler Weighing
700 kg
Bitumen Weighing
500 kg
RAP Surge Area
9 m³
RAP Weighing Hopper
3000 kg
Mixing Power
2 × 75 kW
Mixing Rated Volume
5500 kg
Mixing Capacity
440 t/h
Filler Scaling & Feeding
Screw Conveyor With Dual Frequency Conversion, Batching, Continuous Feeding To Mixer
Bitumen Scaling & Feeding
Dynamic 2-Stage Measurement, High Pressure Uniformly Spray.
Mixing type
Double Shaft/ Twin Motor/ Synchro Twin Reducer
Hot Mix Storage Bin Type
Under Mixer
Hot Mix Storage Bin Capocity
(35 + 35)70 m³
Bitumen Supply System
Filler Supply System
Control System
• DGLeap Control System 2.0ontrol System 2.0
• Large Screen Industrial Computer
• PLC Touch Screen HMI
• Laser Printer
• Air-Conditioned Control Cabin
ENVIRONMENT PERFORMANCE
• Dust Density⩽20mg/Nm³
• Ringelmann Blackness Class 1
• Noise in Control Cabin ⩽70dB
NORMAL OPERATION CONDITION
• Factory Standard
• Industry Standard
• National Standard
• CE Standard
• implement the highest standard
The above specifications are for reference only. D&G Machinery reserves the right to make changes in engineering, design and improvement at any time without prior notice or obligation.
