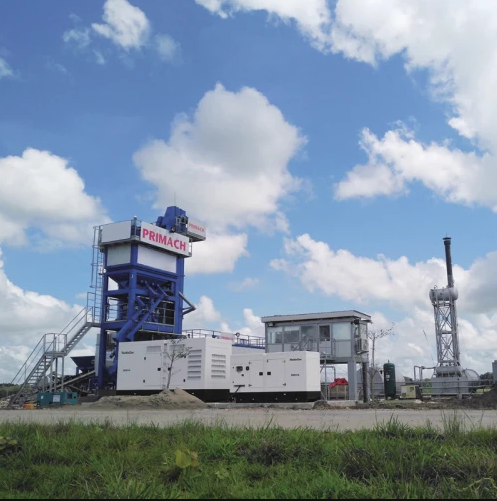

PRIMACH Stationary Series PM105 104t/h asphalt mixing plant

PRIMACH Stationary Series PM105 104t/h asphalt mixing plant

PRIMACH Stationary Series PM105 104t/h asphalt mixing plant
CategoriesPRIMACH Series
AlbumView larger image
BrandD&G
ModelPM105-160
typebatch plant
Rated capacity105-160t/h
Colorcustomization
Applicationbituminous pavement
After-salessupport online
Place of originChina
FOB portTIANJIN
Terms of PaymentL/C, T/T
Download DOC
Update Time2020-11-25
Detail Information
MODEL
PM105
Reted Production Capacity
104 t/h
Cold Feeder System
Cold feeder bin
8 m³ x 4
Extracting Belt Conveyor
2.8-140 t/h
Collecting Belt Conveyor
210 t/h
Drying System
Dryer Drum Capacity
104 t/h (5% Moisture Content)
Dryer Drum Size
Ø 1.6 m x 7.5 m
Burner
Diesel / Heavy Oil / Natural Gas / Coal
Dust Collecting and Filtering System
Filterling Type
● (1st Stage) Pre-separator   ● (2nd Stage) Bag Filter
Filtering Surface
385 ㎡
Exhaust Fan Capacity
34,000 Nm³/h
Screening-Weighing-Mixing System
Aggregate Elevator Capacity
120 t/h
Filler Elevator
16 t/h
Screening
4 Decks
Screen Surface
13 ㎡
Hot Bin Quantity
4
Hot Bin Volume
14 ㎡
Aggregate Weighing Capacity
1,300 kg
Filler Weighing Capacity
150 kg
Bitumen Weighing Capacity
150 kg
Mixer Capacity
1,300 kg
Bitumen Heating & Storage System
Bitumen Tank
                                       ● Horizontal Type
                                       ● 35,000 L
Heating Method
Hot Oil
Hot Oil Boiler
300,000 kCal/h or 750,000 kcal/h
Filler Storage & Feeding System
Single Filler Silo
16 m³
Double Filler Silos
-
Fuel Storage & Feeding System
Fuel Tank
                        ● Horizontal Type
                        ● 20,000L Diesel Tank
Control System
Standard
                        ● Fully Computerized Automatic Control
                        ● LEAP Control System
                        ● Air-Conditioned Control Cabin
Environment Index
                        ● Dust Density ≤ 50 mg/Nm³
                        ● Cabin Noise ≤ 70 dB
                        ● Ringelmann Blackness Class Ⅰ
Note:
● All Capacities are based on 5% moisture content.
● Some specifications / options might not be available in some countries due to local regulations.
● Specifications / options are constantly updated and subject to change.
PRODUCT DISPLAY
asphalt batch mix plant
MODEL
PM125
Reted Production Capacity
124 t/h
Cold Feeder System
Cold feeder bin
8 m³ x 4
Extracting Belt Conveyor
2.8-140 t/h
Collecting Belt Conveyor
210 t/h
Drying System
Dryer Drum Capacity
124 t/h (5% Moisture Content)
Dryer Drum Size
Ø 1.9 m x 8.0 m
Burner
Diesel / Heavy Oil / Natural Gas / Coal
Dust Collecting and Filtering System
Filterling Type
● (1st Stage) Pre-separator   ● (2nd Stage) Bag Filter
Filtering Surface
450 ㎡
Exhaust Fan Capacity
42,000 Nm³/h
Screening-Weighing-Mixing System
Aggregate Elevator Capacity
140 t/h
Filler Elevator
16 t/h
Screening
4 Decks
Screen Surface
13 ㎡
Hot Bin Quantity
4
Hot Bin Volume
14 ㎡
Aggregate Weighing Capacity
1,550 kg
Filler Weighing Capacity
200 kg
Bitumen Weighing Capacity
200 kg
Mixer Capacity
1,550 kg
Bitumen Heating & Storage System
Bitumen Tank
                                       ● Horizontal Type
                                       ● 35,000 L
Heating Method
Hot Oil
Hot Oil Boiler
300,000 kCal/h or 750,000 kcal/h
Filler Storage & Feeding System
Single Filler Silo
16 m³
Double Filler Silos
-
Fuel Storage & Feeding System
Fuel Tank
                        ● Horizontal Type
                        ● 20,000L Diesel Tank
Control System
Standard
                        ● Fully Computerized Automatic Control
                        ● LEAP Control System
                        ● Air-Conditioned Control Cabin
Environment Index
                        ● Dust Density ≤ 50 mg/Nm³
                        ● Cabin Noise ≤ 70 dB
                        ● Ringelmann Blackness Class Ⅰ
Note:
● All Capacities are based on 5% moisture content.
● Some specifications / options might not be available in some countries due to local regulations.
● Specifications / options are constantly updated and subject to change.
MODEL
PM160
Reted Production Capacity
160 t/h
Cold Feeder System
Cold feeder bin
8 m³ x 5
Extracting Belt Conveyor
2.8-140 t/h
Collecting Belt Conveyor
210 t/h
Drying System
Dryer Drum Capacity
160 t/h (5% Moisture Content)
Dryer Drum Size
Ø 2.0 m x 8.5 m
Burner
Diesel / Heavy Oil / Natural Gas / Coal
Dust Collecting and Filtering System
Filterling Type
● (1st Stage) Pre-separator   ● (2nd Stage) Bag Filter
Filtering Surface
600 ㎡
Exhaust Fan Capacity
55,000 Nm³/h
Screening-Weighing-Mixing System
Aggregate Elevator Capacity
180 t/h
Filler Elevator
17 t/h
Screening
5 or 6 Decks
Screen Surface
20 / 24 ㎡
Hot Bin Quantity
5
Hot Bin Volume
20 / 23 ㎡
Aggregate Weighing Capacity
2,000 kg
Filler Weighing Capacity
200 kg
Bitumen Weighing Capacity
200 kg
Mixer Capacity
2,000 kg
Bitumen Heating & Storage System
Bitumen Tank
                                       ● Horizontal Type
                                       ● 35,000 L
Heating Method
Hot Oil
Hot Oil Boiler
300,000 kCal/h or 750,000 kcal/h
Filler Storage & Feeding System
Single Filler Silo
-
Double Filler Silos
16 m³ + 16 m³
Fuel Storage & Feeding System
Fuel Tank
                        ● Horizontal Type
                        ● 20,000L Diesel Tank
Control System
Standard
                        ● Fully Computerized Automatic Control
                        ● LEAP Control System
                        ● Air-Conditioned Control Cabin
Environment Index
                        ● Dust Density ≤ 50 mg/Nm³
                        ● Cabin Noise ≤ 70 dB
                        ● Ringelmann Blackness Class Ⅰ
Note:
● All Capacities are based on 5% moisture content.
● Some specifications / options might not be available in some countries due to local regulations.
● Specifications / options are constantly updated and subject to change.
MODEL
PM200
Reted Production Capacity
200 t/h
Cold Feeder System
Cold feeder bin
10 m³ x 5 or 6
Extracting Belt Conveyor
2.8-140 t/h
Collecting Belt Conveyor
210 t/h
Drying System
Dryer Drum Capacity
● 220 t/h (3% Moisture Content)
● 180 t/h (5% Moisture Content)
Dryer Drum Size
Ø 2.2 m x 9.0 m
Burner
Diesel / Heavy Oil / Natural Gas / Coal
Dust Collecting and Filtering System
Filterling Type
● (1st Stage) Pre-separator   ● (2nd Stage) Bag Filter
Filtering Surface
625 ㎡
Exhaust Fan Capacity
61,000 Nm³/h
Screening-Weighing-Mixing System
Aggregate Elevator Capacity
270 t/h
Filler Elevator
27 t/h
Screening
5 or 6 Decks
Screen Surface
28.1 / 38.36 ㎡
Hot Bin Quantity
5+1 or 6+1
Hot Bin Volume
40 / 45 ㎡
Aggregate Weighing Capacity
2,500 kg
Filler Weighing Capacity
300 kg
Bitumen Weighing Capacity
300 kg
Mixer Capacity
2,500 kg
Bitumen Heating & Storage System
Bitumen Tank
                                       ● Horizontal Type
                                       ● 35,000 L
Heating Method
Hot Oil
Hot Oil Boiler
500,000 kCal/h or 750,000 kcal/h
Filler Storage & Feeding System
Single Filler Silo
-
Double Filler Silos
30 m³ + 50 m³
Fuel Storage & Feeding System
Fuel Tank
                        ● Horizontal Type
                        ● 20,000L Diesel Tank
Control System
Standard
                        ● Fully Computerized Automatic Control
                        ● LEAP Control System
                        ● Air-Conditioned Control Cabin
Environment Index
                        ● Dust Density ≤ 50 mg/Nm³
                        ● Cabin Noise ≤ 70 dB
                        ● Ringelmann Blackness Class Ⅰ
Note:
● All Capacities are based on 5% moisture content.
● Some specifications / options might not be available in some countries due to local regulations.
● Specifications / options are constantly updated and subject to change.
MODEL
PM240
Reted Production Capacity
240 t/h
Cold Feeder System
Cold feeder bin
18 m³ x 5 or 6
Extracting Belt Conveyor
2.8-140 t/h
Collecting Belt Conveyor
310 t/h
Drying System
Dryer Drum Capacity
● 300 t/h (3% Moisture Content)
● 240 t/h (5% Moisture Content)
Dryer Drum Size
Ø 2.5 m x 9.0 m
Burner
Diesel / Heavy Oil / Natural Gas / Coal
Dust Collecting and Filtering System
Filterling Type
● (1st Stage) Pre-separator   ● (2nd Stage) Bag Filter
Filtering Surface
796 ㎡
Exhaust Fan Capacity
80,000 Nm³/h
Screening-Weighing-Mixing System
Aggregate Elevator Capacity
270 t/h
Filler Elevator
27 t/h
Screening
5 or 6 Decks
Screen Surface
28.1 / 38.36 ㎡
Hot Bin Quantity
5+1 or 6+1
Hot Bin Volume
40 / 45 ㎡
Aggregate Weighing Capacity
3,000 kg
Filler Weighing Capacity
400 kg
Bitumen Weighing Capacity
400 kg
Mixer Capacity
3,000 kg
Bitumen Heating & Storage System
Bitumen Tank
                                       ● Horizontal Type
                                       ● 35,000 L
Heating Method
Hot Oil
Hot Oil Boiler
500,000 kCal/h or 750,000 kcal/h
Filler Storage & Feeding System
Single Filler Silo
-
Double Filler Silos
30 m³ + 50 m³
Fuel Storage & Feeding System
Fuel Tank
                        ● Horizontal Type
                        ● 20,000L Diesel Tank
Control System
Standard
                        ● Fully Computerized Automatic Control
                        ● LEAP Control System
                        ● Air-Conditioned Control Cabin
Environment Index
                        ● Dust Density ≤ 50 mg/Nm³
                        ● Cabin Noise ≤ 70 dB
                        ● Ringelmann Blackness Class Ⅰ
Note:
● All Capacities are based on 5% moisture content.
● Some specifications / options might not be available in some countries due to local regulations.
● Specifications / options are constantly updated and subject to change.
