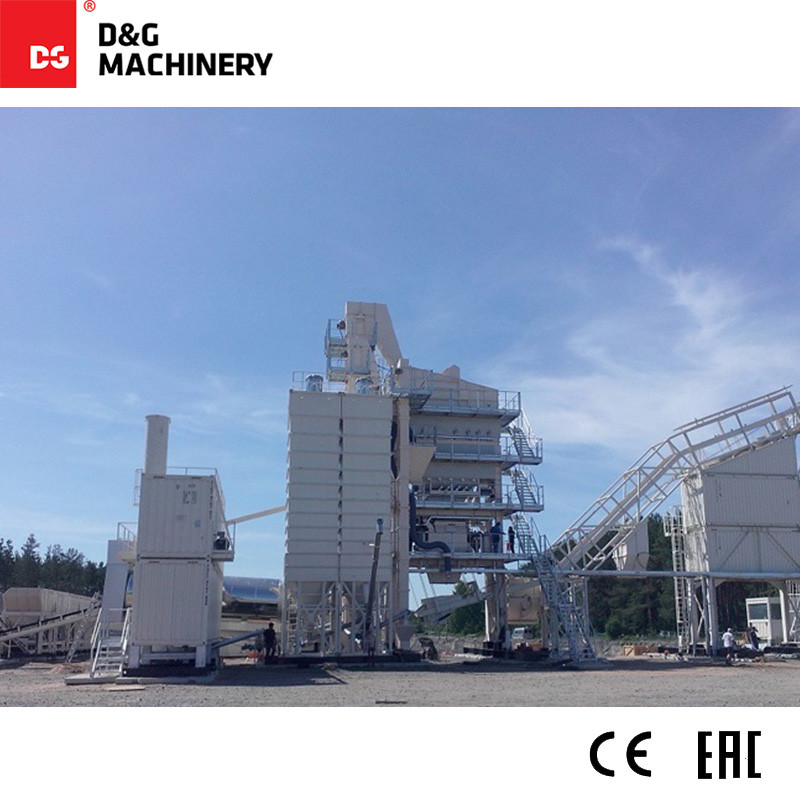

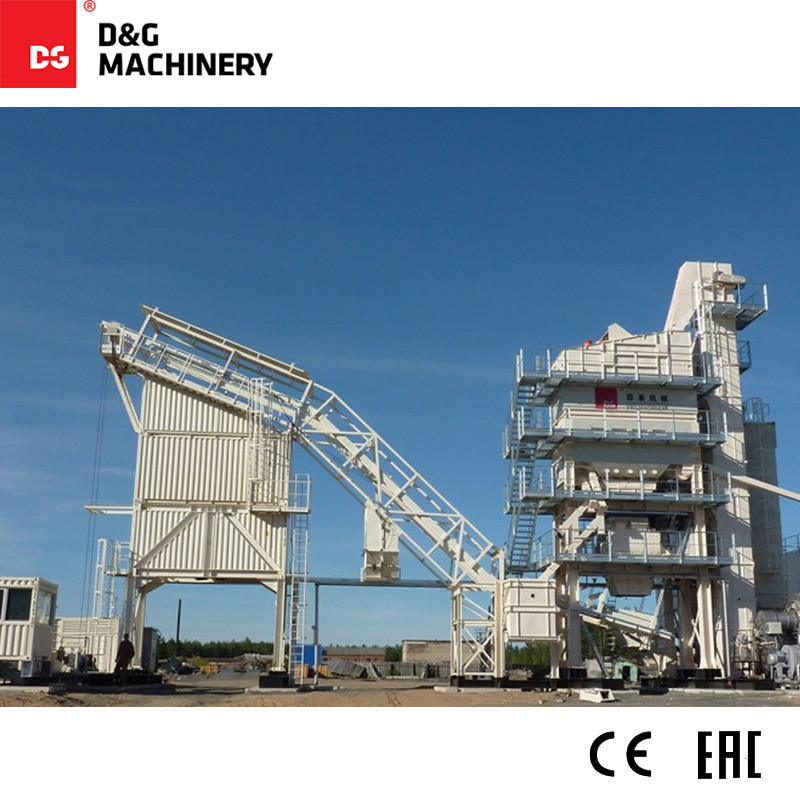

DGC Compact Series DG3000T220AC 240t/h asphalt mixing plant with container

DGC Compact Series DG3000T220AC 240t/h asphalt mixing plant with container

DGC Compact Series DG3000T220AC 240t/h asphalt mixing plant with container
DGC Compact Series DG3000T220AC 240t/h asphalt mixing plant with containerDGC Compact Series DG3000T220AC 240t/h asphalt mixing plant with containerDGC Compact Series DG3000T220AC 240t/h asphalt mixing plant with container
CategoriesDGC Compact Series
AlbumView larger image
BrandD&G
ModelDG3000T220AC
Rated capacity240t/h
FeatureSOC(shipper owned container)
Installed powerAppr. 601kW (Standard Configuration)
FOB portTIANJIN
Terms of PaymentL/C, D/A, T/T
Download DOC
Update Time2020-11-25
Detail Information
TECHNICAL DATA
MODEL
DG3000T220AC
Rated Production Capacity
240 t/h
Cold Feeder Bin
Number × Volume
2 × 18 m³
Dryer Drum
Diameter Ø
ø 2.5 m
Length
9 m
Fuel Type
Diesel / Heavy Oil / Nature Gas
Drying Capacity
– Moisture Content 3%
300 t/h
– Moisture Content 5%
240 t/h
Bag House
Dust Filtering Method
(1st Stage) Pre-separator + (2nd Stage) Bag Filtering House
Main Tower
Screening
5
Screening Area
28.1 m²
Hot Bin Quantity
5 + 1
Hot Bin Overall Volume
40 m³
Aggregates Weighing
3000 kg
Filler Weighing
400 kg
Bitumen Weighing
400 kg
Mixing Power
×  37 kW
Mixing Capacity
3000 kg
Filler Scaling & Feeding
Vari-Frequency Screw, Compelled and Well-Distributed Feeding Design.
Bitumen Scaling & Feeding
Dynamic 2-Stage Measurement, High Pressure Uniformly Spray.
Mixing
2 Horizontal Mixing Shafts, Dual-Motor Driven with Synchronous Reducer.
Control System
• DGLeap Control System 2.0ontrol System 2.0
• Large Screen Industrial Computer • PLC Touch Screen HMI
• Laser Printer • Air-Conditioned Control Cabin
Environment Index
• Dust Density⩽20mg/Nm³
• Ringelmann Blackness Class 1
• Noise in Control Cabin ⩽70dB
The above specifications are for reference only. D&G Machinery reserves the right to make changes in engineering, design and improvement at any time without prior notice or obligation.
