Jaw Crusher - PE

Categories	Flat-type Crushing Plant
Brand	D&G Asphalt Plant Manufacturer
Model	Multiple Models
Type	Flat Type
Origin of Place	China
Color	Customizable
FOB port	TIANJIN
Terms of Payment	L/C, T/T
Update Time	Apr 27,2024

Contact Now

Favorites

Detail Information

Jaw Crusher D&G Machinery manufacturer China

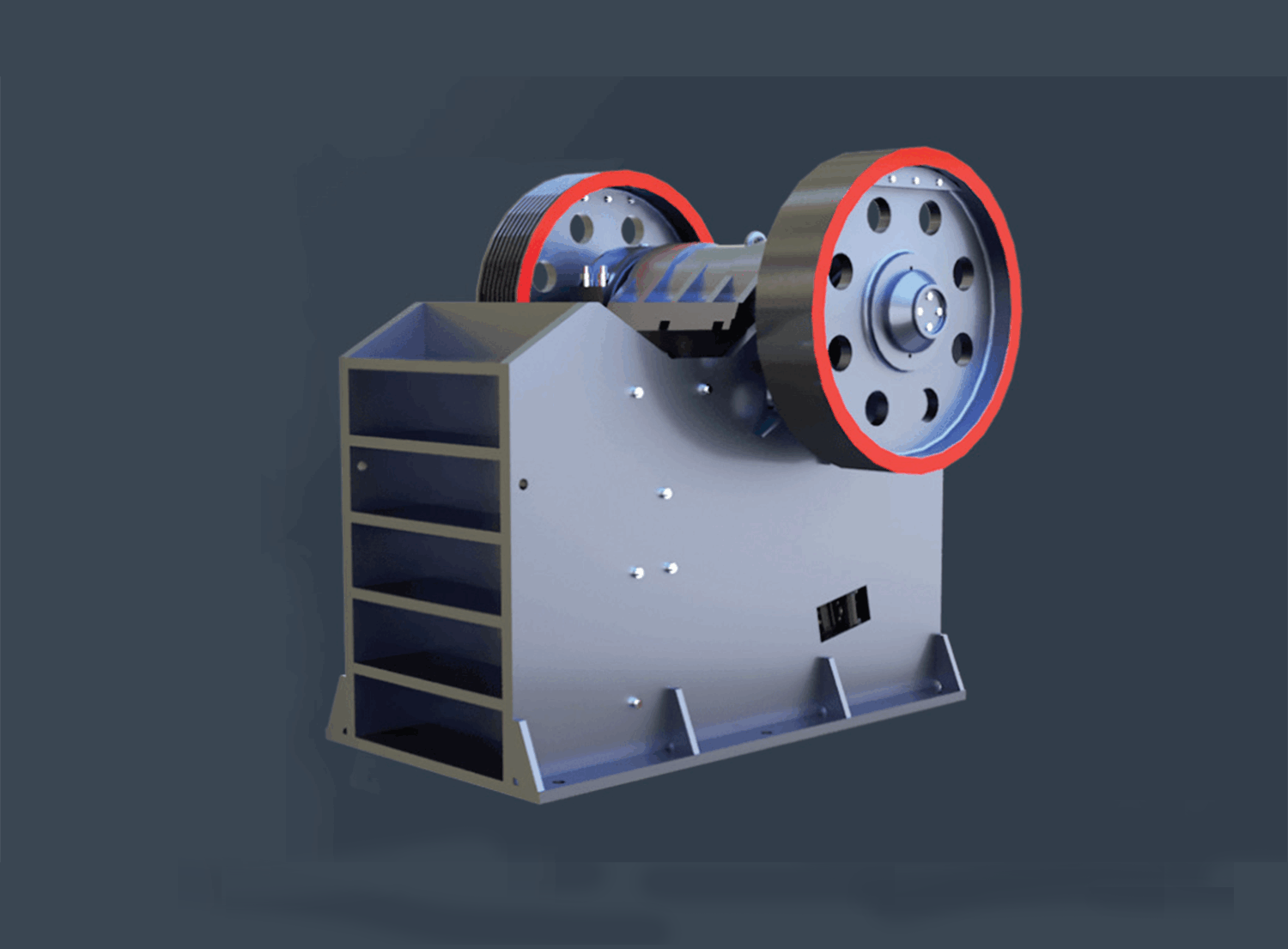

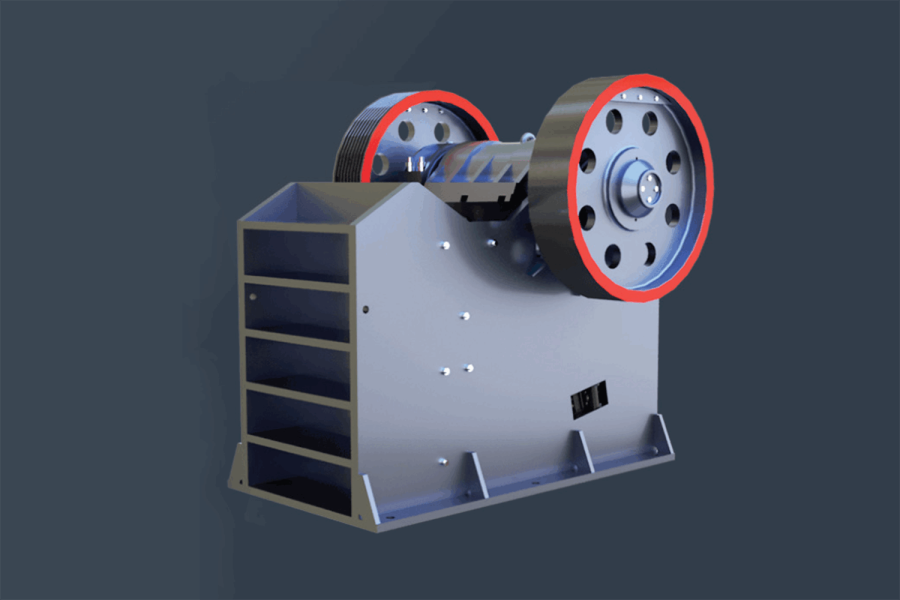

Jaw Crusher - PE

This product achieves the crushing purpose by the reciprocating motion of the moving jaw and the fixed jaw, squeezing, rubbing, and grinding the material in the crushing chamber. In recent years, to meet the needs of crushing high strength and high hardness ores in metallurgy, mining, construction, and other industries, a strong jaw crusher has been specially developed.

Contact us to get the product catalogue!

Product Parameters:

Specification	Feed Opening Size(mm)	Max.Feeding Size(mm)	Range of Outlet(mm）	Capacity(t/h)	Eccentric Shaft Rotation Speed(r/min)	Motor Power(kW)	Total Weight(t)	Overall Size( L x W x H)
PE-500X750	500X750	425	50-100	40-110	275	55	12	1980X2080X1870
PE-600X900	600X900	500	65-160	50-180	250	55/75	15.5	2190X2206X2300
PE-750X1060	750X1060	630	80-140	110-320	250	90/110	29	2660X2430X2800
PE-900X1200	900X1200	750	95-165	220-450	200	110-132	52	3380X2870X3330
PE-1000X1200	1000X1200	850	195-300	280-560	200	110-160	58	3480X2876X3330
PE-1200X1500	1200X1500	1020	150-350	400-800	180	160-220	100.9	4200X3300X3500
PE-1500X1800	1500X1800	1200	220-350	500-1000	180	280-355	122	5160X3660X4248
PE-1600X2100	1600X2100	1500	300-400	1300-2200	160	350-380	150.6	6210X4013X4716
PEX-250X1200	250X1200	210	25-60	20-61	330	37	8	2140X1660X1500
PEX300X1300	300X1300	250	20-90	16-105	300	55-75	11.5	2720X1950X1600
