Multi-Cylinder Full Hydraulic Cone Crusher

Multi-Cylinder Full Hydraulic Cone Crusher

Multi-Cylinder Full Hydraulic Cone Crusher
Multi-Cylinder Full Hydraulic Cone CrusherMulti-Cylinder Full Hydraulic Cone Crusher
CategoriesFlat-type Crushing Plant
BrandD&G Asphalt Plant Manufacturer
ModelMultiple Models
TypeFlat Type
Origin of PlaceChina
ColorCustomizable
FOB portTIANJIN
Terms of PaymentL/C, T/T
Update TimeMay 28,2024
Detail Information

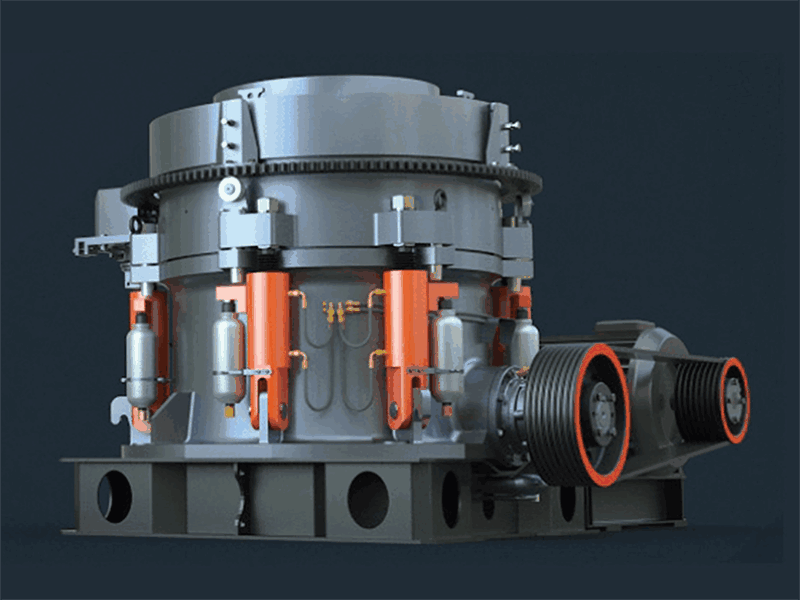

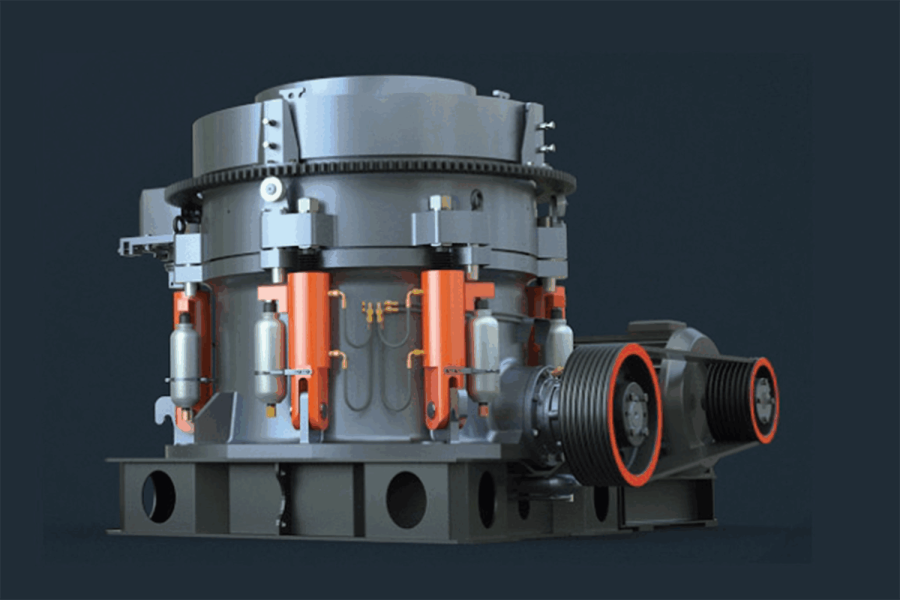

Multi-Cylinder Full Hydraulic Cone Crusher – LHP D&G Machinery manufacturer China

Multi-Cylinder Full Hydraulic Cone Crusher – LHP


The multi-cylinder hydraulic cone crusher is suitable for crushing various ores and rocks with and above medium hardness, such as iron ore, pebble, non-ferrous metal ore, granite, basalt, limestone, quartzite, and sandstone, etc. Its high speed, high crushing capacity, and unique patented design result in crushed products with extremely high quality cubic shape. It is renowned worldwide for its easy maintenance and exceptional stability during operation. It is the latest generation product in the mining and construction industry, replacing the spring cone crusher and upgrading the conventional hydraulic cone crusher.





Product Parameters:

Model
Chamber Profile
Standrad Type
Short Head Type
Power(kW)
Capacity(t/h)
Crusher Weight(ton)
Total Weight(ton)
Feed Opening Size(mm)
Discharge Opening Size(mm)
Feed Opening Size(mm)
Discharge Opening Size(mm)
XHP200
medium(m)
125
17
54
6
132-200
90-250
11.14
14
fine(F)
95
13
23
6
XHP300
medium(m)
150
15
50
8
180-250
110-440
15.8
19.96
fine(F)
105
10
20
6
XHP400
medium(m)
195
20
50
8
280-355
140-630
23
28.72
fine(F)
110
14
40
6
XHP500
medium(m)
200
20
55
10
355-450
175-790
33.3
38
fine(F)
133
16
40
8
XHP800
medium(m)
267
25
92
10
550-630
260-1200
fine(F)
219
16
33
6
