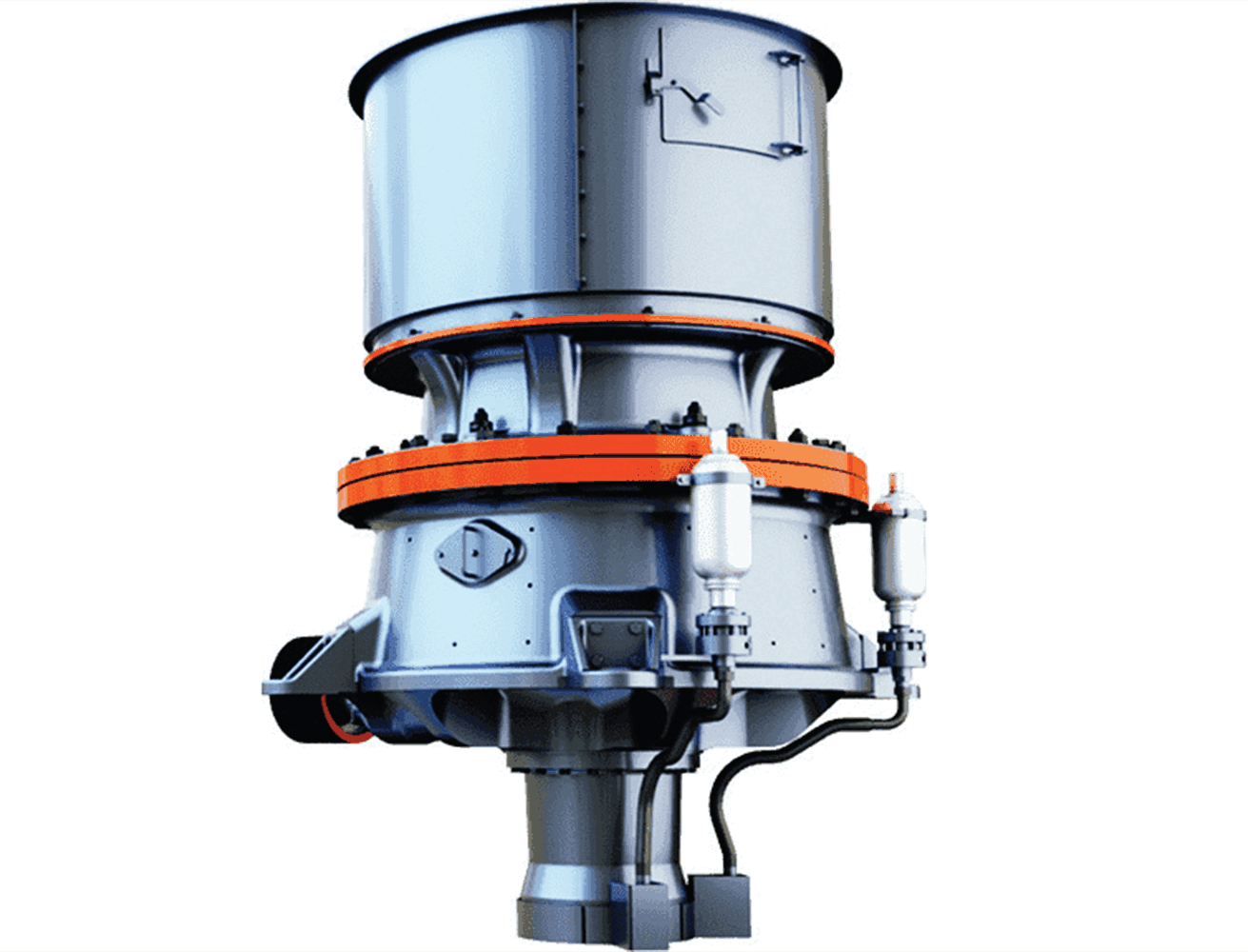

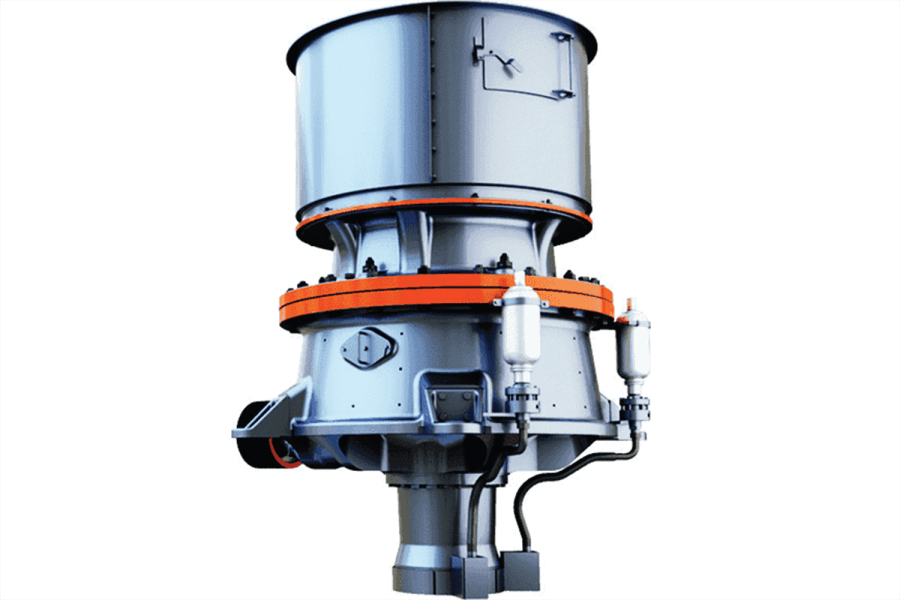

Single-Cylinder Hydraulic Cone Crusher - CH/CS

Single-Cylinder Hydraulic Cone Crusher - CH/CS

Single-Cylinder Hydraulic Cone Crusher - CH/CS
Single-Cylinder Hydraulic Cone Crusher - CH/CSSingle-Cylinder Hydraulic Cone Crusher - CH/CS
CategoriesFlat-type Crushing Plant
BrandD&G Asphalt Plant Manufacturer
ModelMultiple Models
TypeFlat Type
Origin of PlaceChina
ColorCustomizable
FOB portTIANJIN
Terms of PaymentL/C, T/T
Update TimeJul 26,2024
Detail Information
Single-Cylinder Hydraulic Cone Crusher - CH/CS D&G Machinery manufacturer China

Single-Cylinder Hydraulic Cone Crusher - CH/CS


The product has hydraulic locking and hydraulic adjustment capabilities, as well as iron release and cavity clearing functions. Its equipped hydraulic system and lubrication system ensure the safe and normal operation of the equipment. The hydraulic system can control the size of the discharge port through flexible adjustment of the pushing cylinder, achieving control over the particle size and production capacity of the discharged material. The electrical control system incorporates multiple electronic intelligent displays and self-locking control devices for equipment safety protection, allowing for safe real-time monitoring of oil temperature, oil pressure, flow rate, emergency situations, and timely.





Product Parameters:

Model
Max.Maintenance Weight(kg)
Motor Power(kW)
Production Capacity(t/h)
Weight(ton)
CH430
5200
132
120-150
10500
CS430
3000
132
150-200
12000
CH440
8200
220
180-220
153000
CS440
4800
220
300-500
19300
CH660
16800
315
350-450
24200
CS660
8600
315
380-650
35700
CH870
13200
560
450-860
49800
