Spiral Sand Washer – LLX

Spiral Sand Washer – LLX

Spiral Sand Washer – LLX
CategoriesFlat-type Crushing Plant
BrandD&G Asphalt Plant Manufacturer
ModelMultiple Models
TypeFlat Type
Origin of PlaceChina
ColorCustomizable
FOB portTIANJIN
Terms of PaymentL/C, T/T
Update TimeJun 16,2024
Detail Information
Spiral Sand Washer – LLX D&G Machinery manufacturer China

Spiral Sand Washer – LLX

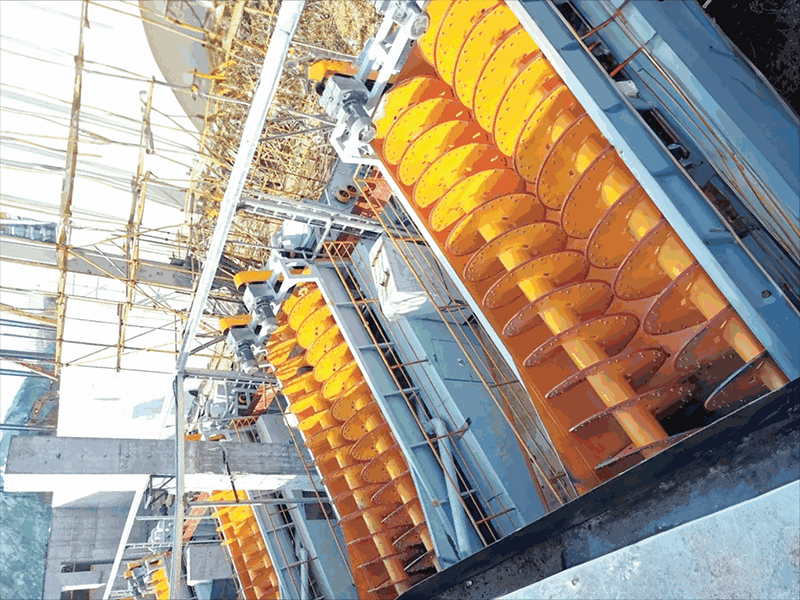

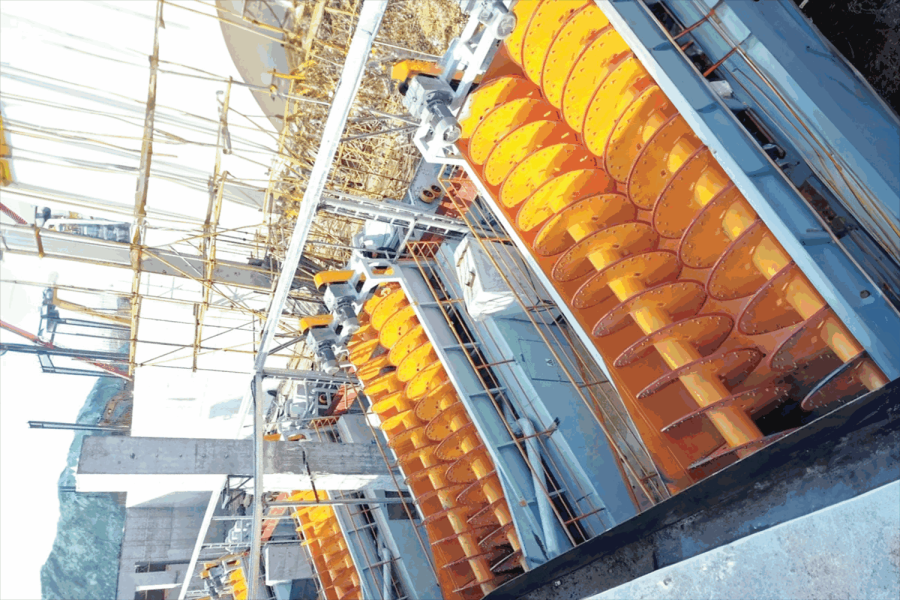

The spiral sand washer is a type of sand washing machine that primarily uses a spiral device within the equipment to agitate the sand and gravel material, thereby mixing the clay and water present in the sand and gravel. The mixture is discharged through the flow outlet, while the sand and gravel material is gradually screened and discharged through the outlet at the top, achieving the desired cleaning and screening effect.






Product Parameters:

 Model
Screw Quantity(Pcs)
Screw Diameter(φ mm)
Length of Water Channel(mm)
 Capacity(t/h)
Motor Power(kW)
1xL920-7
1
920
7000
40-60
11
2xL920-7.5
2
920
7500
90-120
2x11
1xL1120-7.5
1
1120
7500
60-90
18.5
2xL1120-7.5
2
1120
7500
150-200
2x18.5
1xL1500-7.5
1
1500
7500
90-120
18.5
1xL1500-9
1
1500
9000
100-170
22
2xL1500-9.5
2
1500
9000
220-260
2x22
