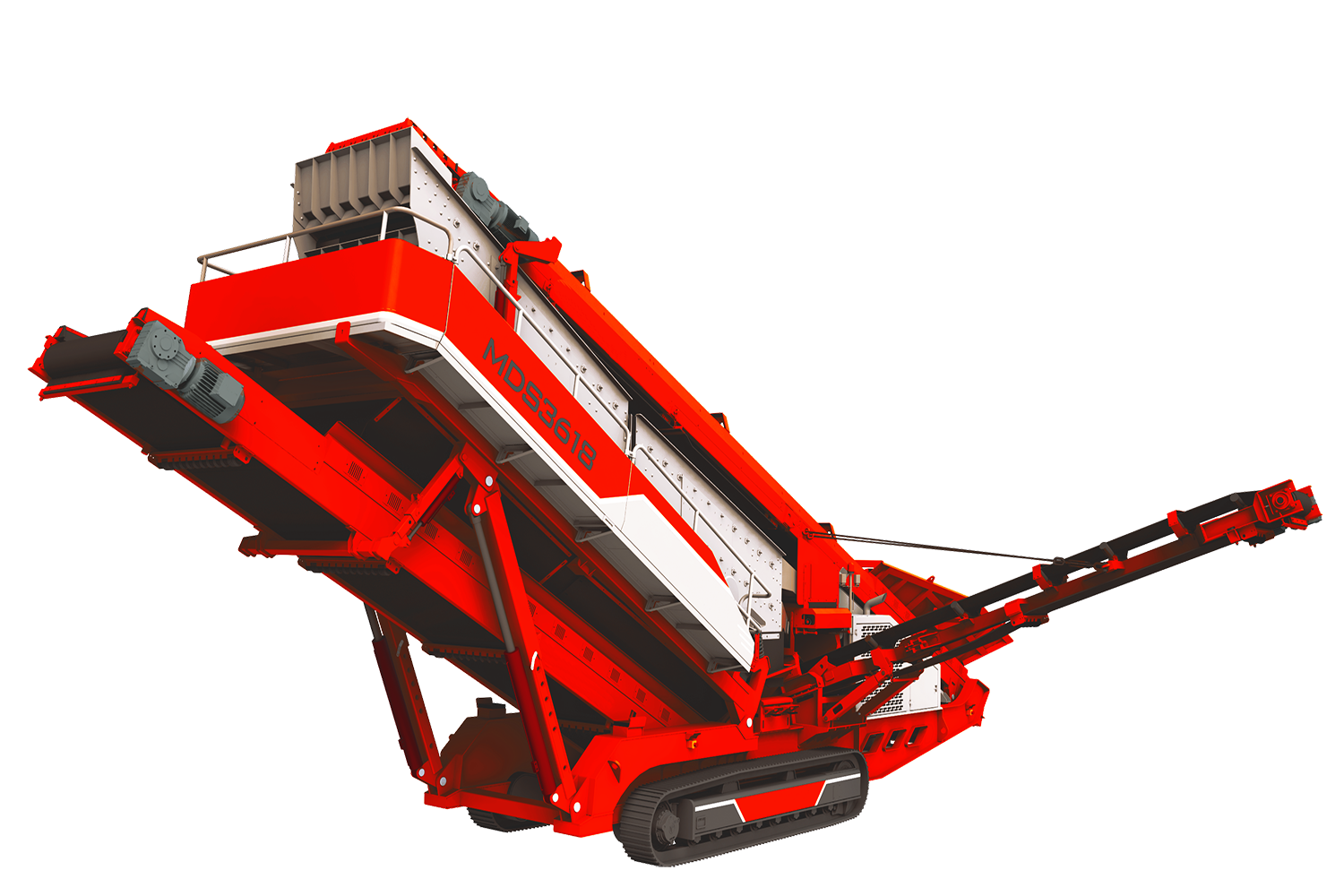

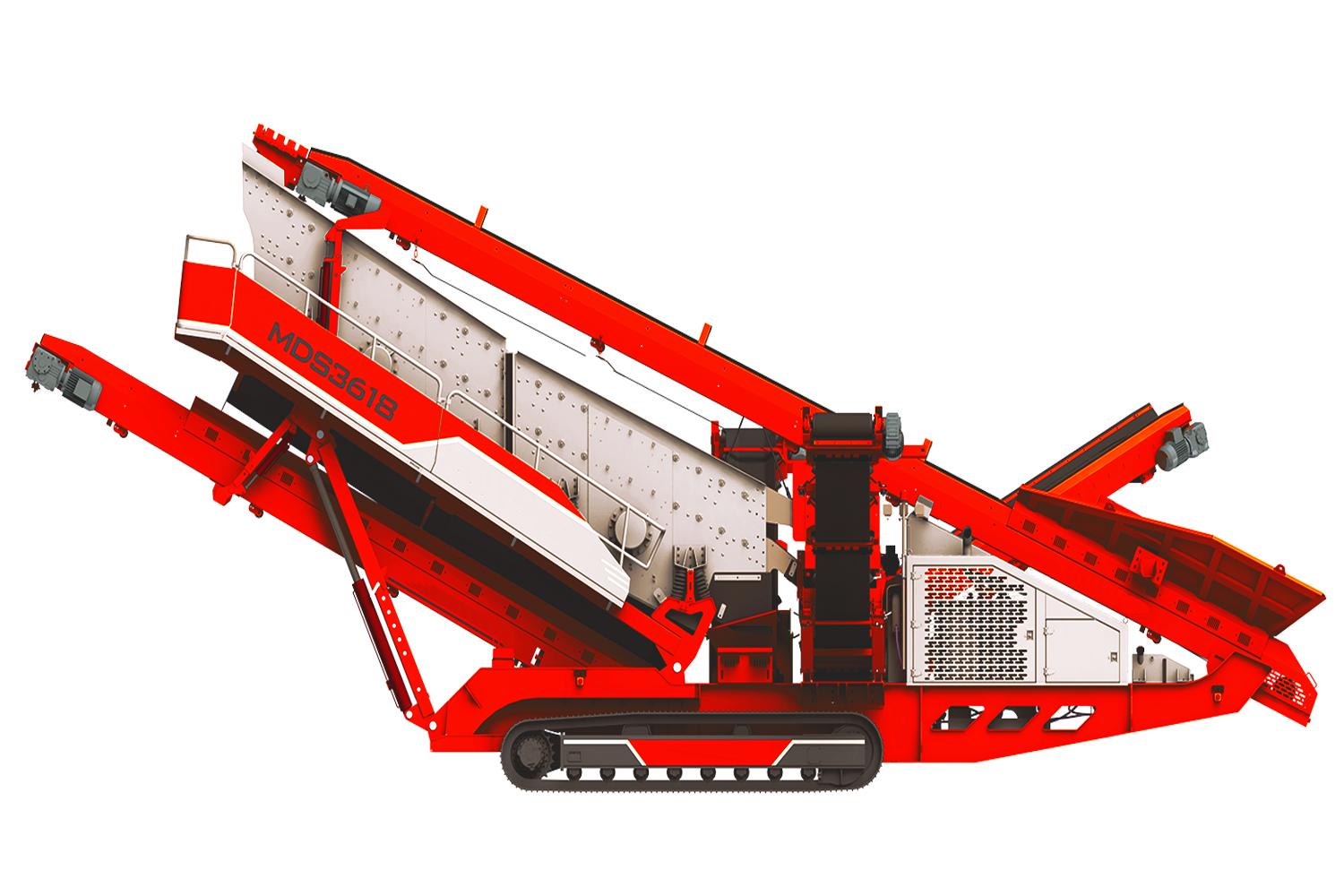

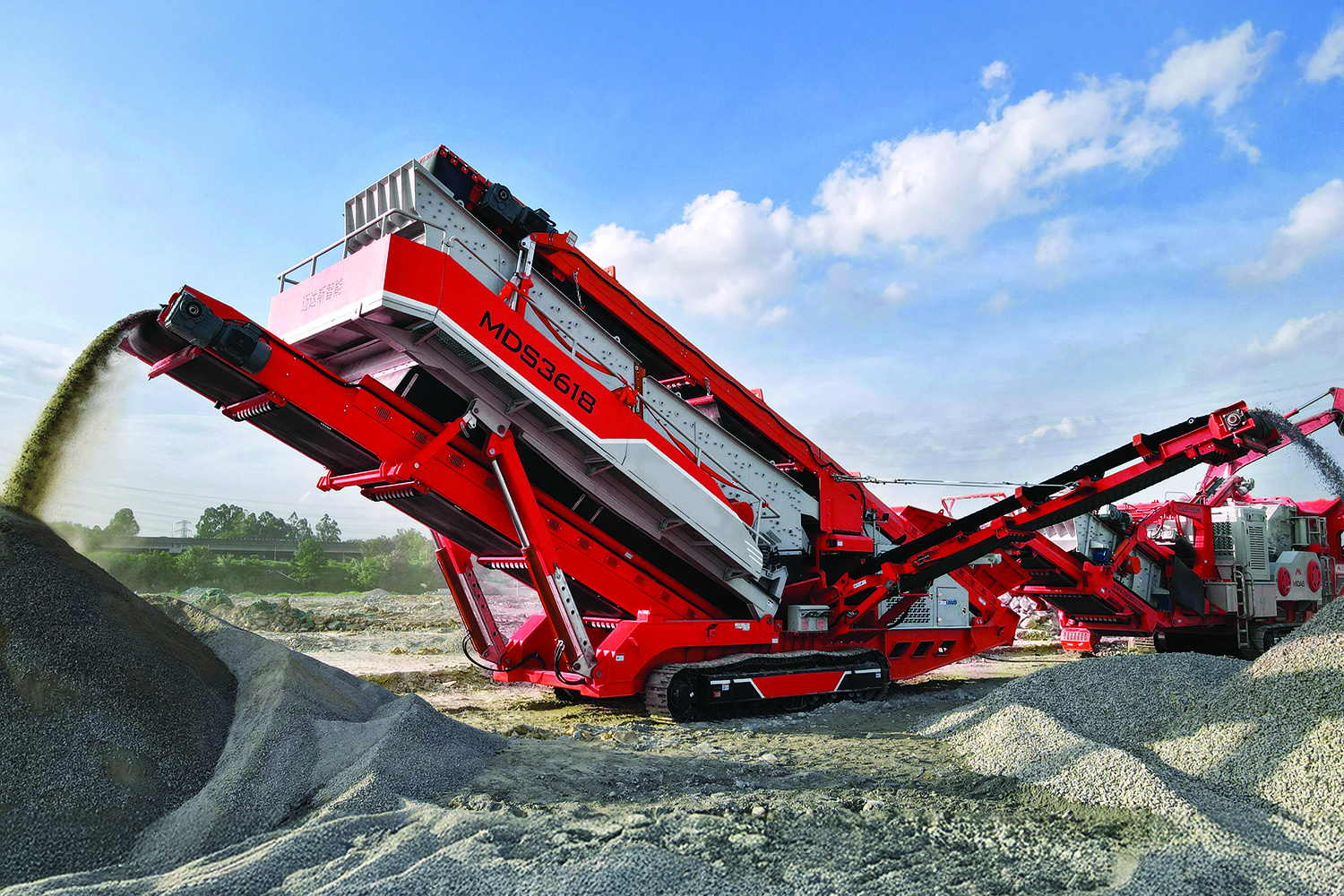

MDS series crawler mobile screening plant, equipped with onboard automatic folding belt conveyor featuring large processing capacity. It is suitable for fine screening of materials and applicable to the screening of finished materials after the crushing of various sand, gravel, and construction waste. It features flexible overall relocation, durability, and high reliability.
1. Double section of the screen body
2. Accurate screening
3. Hydraulic auxiliary
|
Parts/ Configuration |
Model |
|||
|
MDS-3618 |
MS-5618 |
MS-3618E |
MS-3618 |
|
|
Feeder |
||||
|
Volume（m³） |
2.8 |
2.8 |
2.8 |
|
|
Feeding height（mm） |
1979 |
2252 |
2252 |
2252 |
|
Max feeding particle size（mm） |
200 |
200 |
200 |
200 |
|
Processing capacity（t/h） |
350 |
400 |
350 |
350 |
|
Screening |
||||
|
3 |
4 |
3 |
3 |
|
|
Vibrating screen length×width（mm） |
6000x1800 |
6000x1800 |
6000x1800 |
|
|
Conveyors |
||||
|
1000 |
1000 |
1000 |
||
|
Transfer conveyor width （mm） |
650 |
500 |
500 |
500 |
|
Under screen conveyor width× stacking height（mm） |
1200x4399 |
1000x4280 |
1000x3422 |
1000x3422 |
|
Side 1 belt conveyor width× stacking height（mm） |
500x3650 |
500x3500 |
500x3570 |
500x3570 |
|
Side 2 belt conveyor width× stacking height（mm） |
650x3755 |
650x3500 |
650x3697 |
650x3697 |
|
Side 3 belt conveyor width× stacking height（mm） |
650x3603 |
650x3500 |
650x3560 |
650x3560 |
|
Side 4 belt conveyor width× stacking height（mm） |
/ |
650x3500 |
/ |
/ |
|
Parameters |
||||
|
Total power（kW） |
74.5 |
108 |
64.5 |
64.5 |
|
Processing capacity（t/h） |
200-500 |
200-500 |
200-500 |
200-500 |
|
Speed（km/h） |
0.6-1 |
0.6-1 |
0.6-1 |
0.6-1 |
|
Total Weight（t） |
38 |
45 |
36 |
34 |
|
Transportation size length x width x height (mm） |
16468x3366x3776 |
18440x3050x4060 |
14808x3539x3799 |
14808x3539x3799 |
|
The data in this table is for reference only. Specifics are subject to the actual product configuration. |
||||
