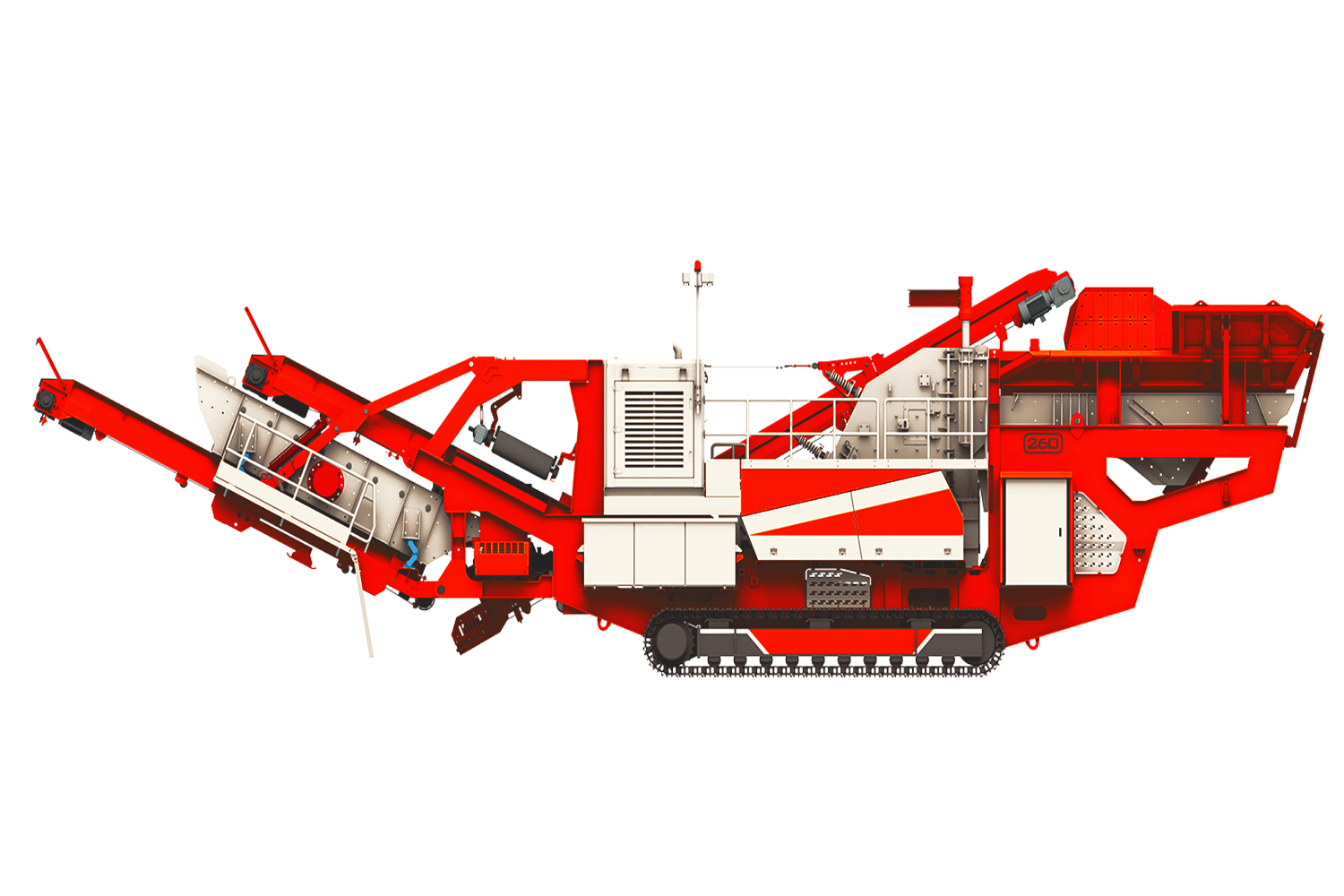

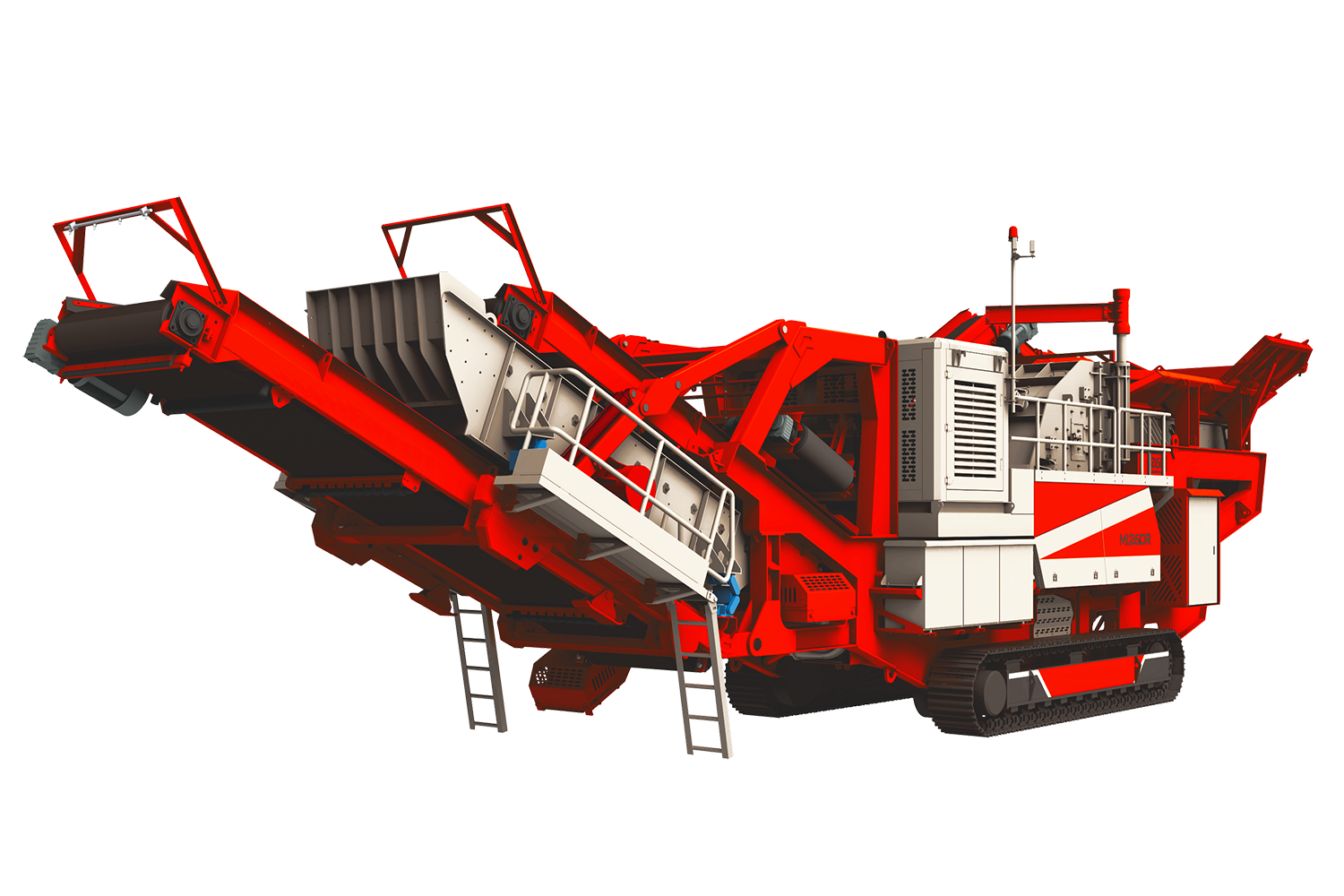

Equipped with European C series crushing machine, large folding bin, independent pre-screening system, in addition to the iron spray device, mainly do the primary crushing of materials, large feeding particle size, wide discharging range, suitable for all kinds of rocks. Convenient relocation, high crushing efficiency.
1. Powerful
2. Good crushing shape
3. High efficiency
|
Parts/ Configuration |
Model |
||||
|
MI-150R |
MI-260R |
MI-350RE |
MI-350R |
MI-550 |
|
|
Volume（m³） |
4 |
7 |
7 |
7 |
9 |
|
Feeding height（mm） |
4200 |
4250 |
4250 |
4250 |
4500 |
|
Max feeding particle size（mm） |
550 |
600 |
600 |
600 |
800 |
|
Processing capacity（t/h） |
200 |
300 |
400 |
400 |
600 |
|
Crusher |
|||||
|
Crusher model |
MIX2 |
MIX3 |
MIX3 |
MIX4 |
|
|
Return screen length×width（mm） |
3700x1200 |
3600x1540 |
5000x1740 |
5000x1740 |
/ |
|
1 |
1 |
1 |
1 |
/ |
|
|
Discharge Range（mm） |
25-100 |
25-100 |
25-100 |
25-100 |
25-100 |
|
Conveyors |
|||||
|
Main conveyor width （mm） |
1000 |
1200 |
1200 |
1200 |
1200 |
|
Transfer conveyor width（mm） |
500 |
500 |
500 |
500 |
500 |
|
Return conveyor width（mm） |
500 |
500 |
500 |
500 |
500 |
|
Finished product conveyor width（mm） |
1000 |
1200 |
1200 |
1200 |
1200 |
|
Finished conveyor Stacking Height（mm） |
3200 |
3471 |
3449 |
3449 |
3200 |
|
Parameters |
|||||
|
Total power（kW） |
217.2 |
265.6 |
347.2 |
347.2 |
415.7 |
|
Host power（kW） |
160 |
200 |
280 |
280 |
375 |
|
Processing capacity（t/h） |
100-200 |
160-350 |
250-500 |
250-500 |
400-600 |
|
Speed（km/h） |
0.6-1 |
0.6-1 |
0.6-1 |
0.6-1 |
|
|
Total Weight（t） |
48 |
55 |
65 |
61 |
80 |
|
Transportation size length x width x height（mm） |
16600x3200x3800 |
18127x3626x3909 |
18882x3505x3872 |
18882x3505x3872 |
19600x3380x3800 |
|
The data in this table is for reference only. Specifics are subject to the actual product configuration. |
|||||
