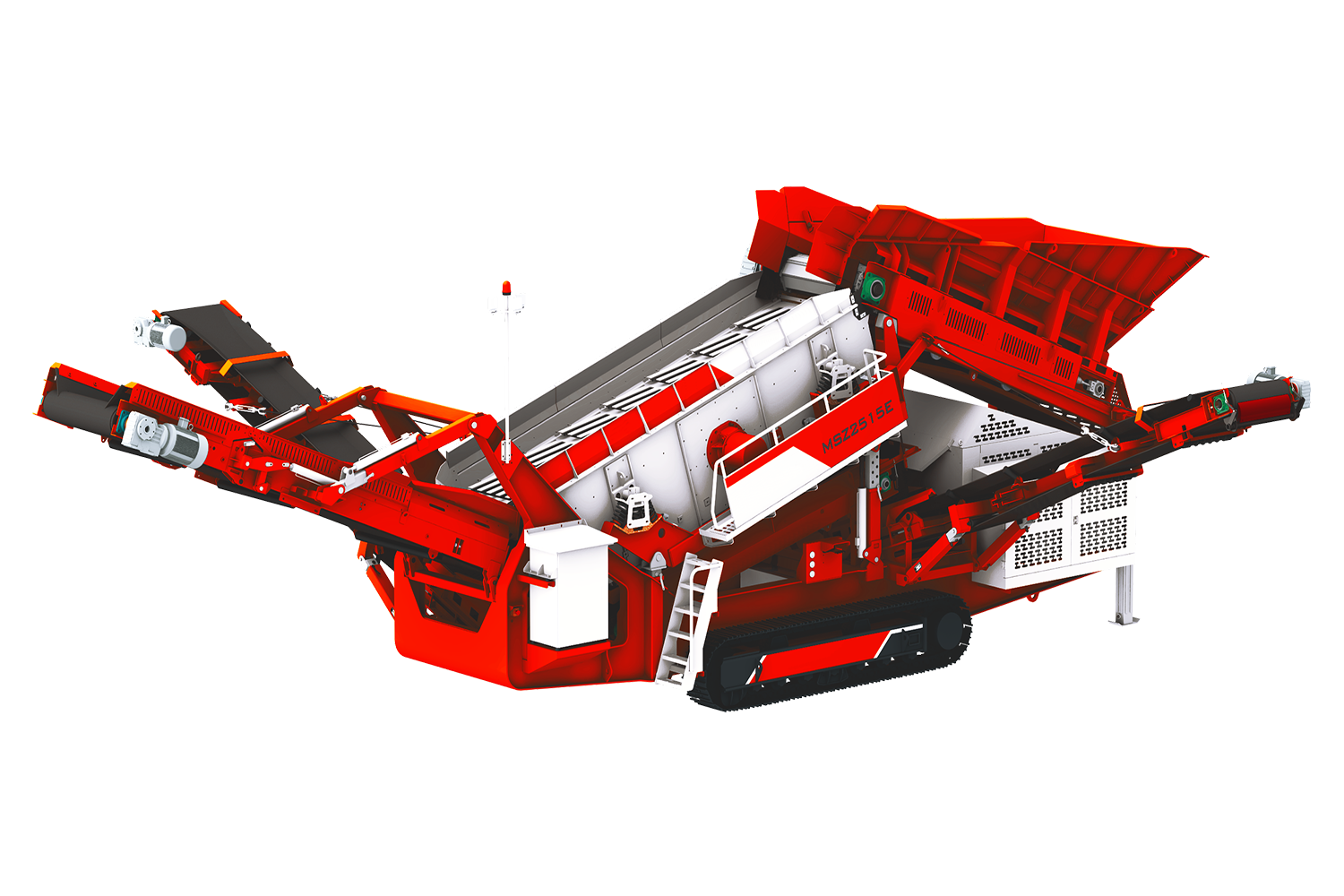

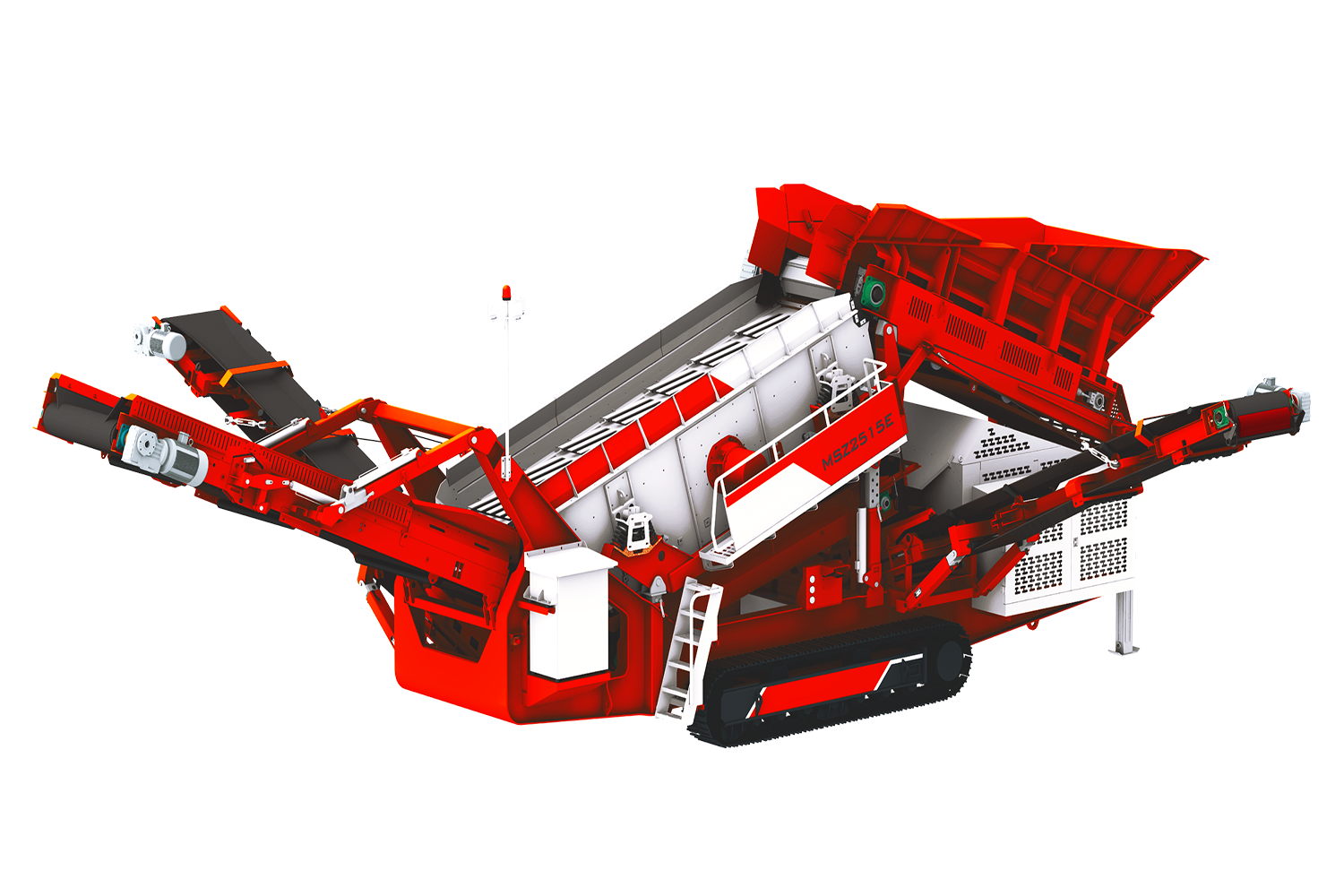

The MSZ series tracked mobile heavy-duty screening plant boasts rich application experience. Whether operating independently or as part of a production line, it can maintain a high- level production state with large output. It is mainly used for stone soil separation, surface soil treatment in the early stage of mining construction, screening and treatment of engineering waste and tailings, recycling of construction waste, screening of pebbles, coal mines, and aggregates.
1. Earth-rock separation
2. Heavy framework
3. Stable and durable
|
Parts/ Configuration |
Model |
||
|
MSZ-2618 |
MSZ-2515E |
MSZ-2515 |
|
|
Feeder |
|||
|
Volume（m³） |
6.5 |
6.5 |
6.5 |
|
Feeding height（mm） |
3642 |
3685 |
3685 |
|
Max feeding particle size（mm） |
500 |
500 |
500 |
|
Processing capacity（t/h） |
600 |
500 |
500 |
|
Return screen(double segment) |
|||
|
Mesh layer |
2 |
2 |
2 |
|
Vibrating screen length×width（mm） |
6000x1800 |
4800x1550 |
4800x1550 |
|
Conveyors |
|||
|
Feeding conveyor width（mm） |
1200 |
1000 |
1000 |
|
Under screen conveyor width（mm） |
1400 |
1200 |
1200 |
|
Large material conveyor width×length（mm） |
1400x3700 |
1200x3700 |
1200x3700 |
|
Medium material conveyor width×length（mm） |
800x3235 |
800x3500 |
800x3500 |
|
Fine material conveyor width×length（mm） |
800x3615 |
800x3500 |
800x3500 |
|
Parameters |
|||
|
Total power（kW） |
77.5 |
66 |
66 |
|
Processing capacity（t/h） |
500-800 |
250-500 |
250-500 |
|
Speed（km/h） |
0.6-1 |
0.6-1 |
0.6-1 |
|
Total Weight（t） |
40 |
36.3 |
35.8 |
|
Transportation size length x width x height（mm） |
17460x3480x3800 |
14794x3260x3622 |
14794x3260x3622 |
|
The data in this table is for reference only. Specifics are subject to the actual product configuration. |
|||
