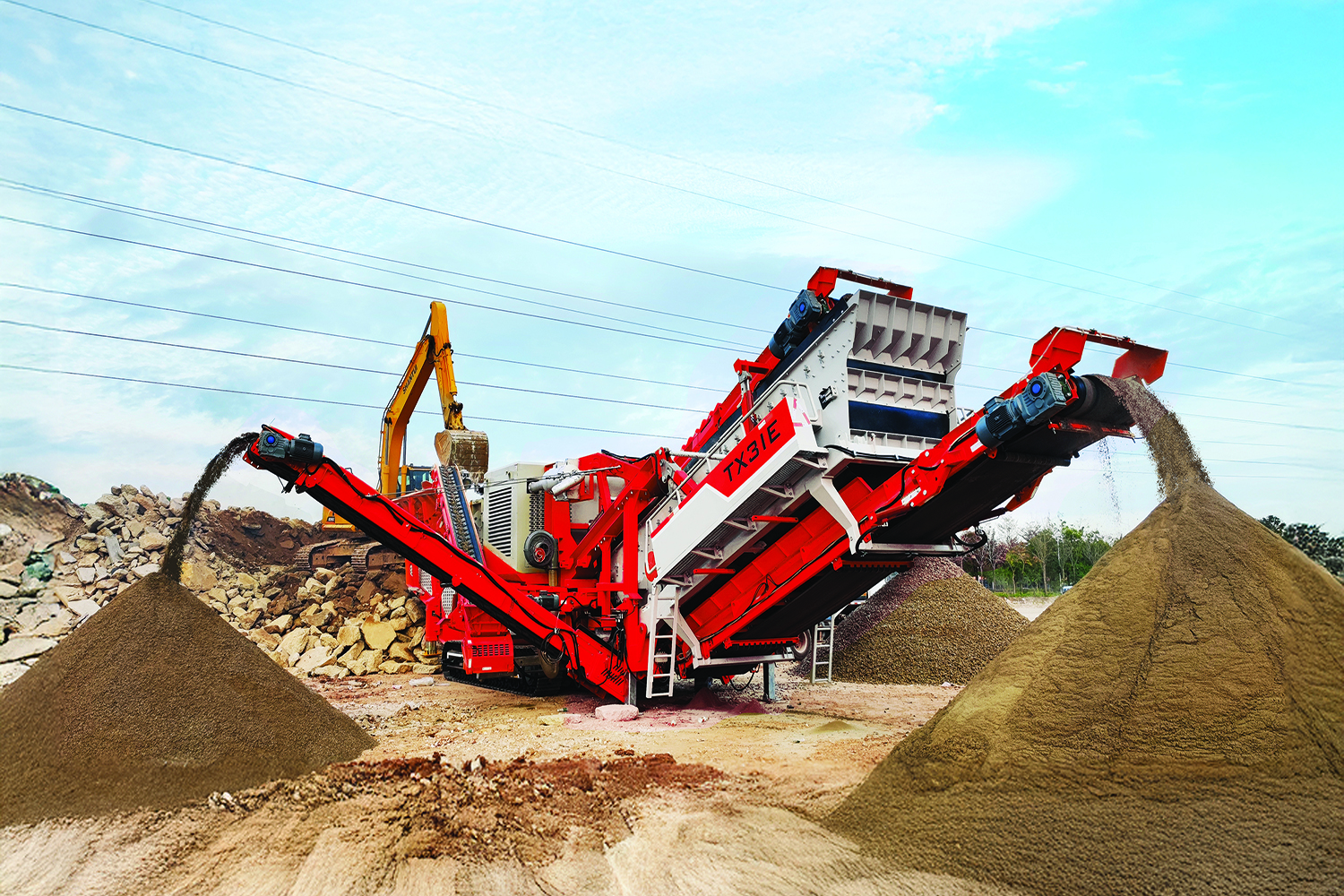

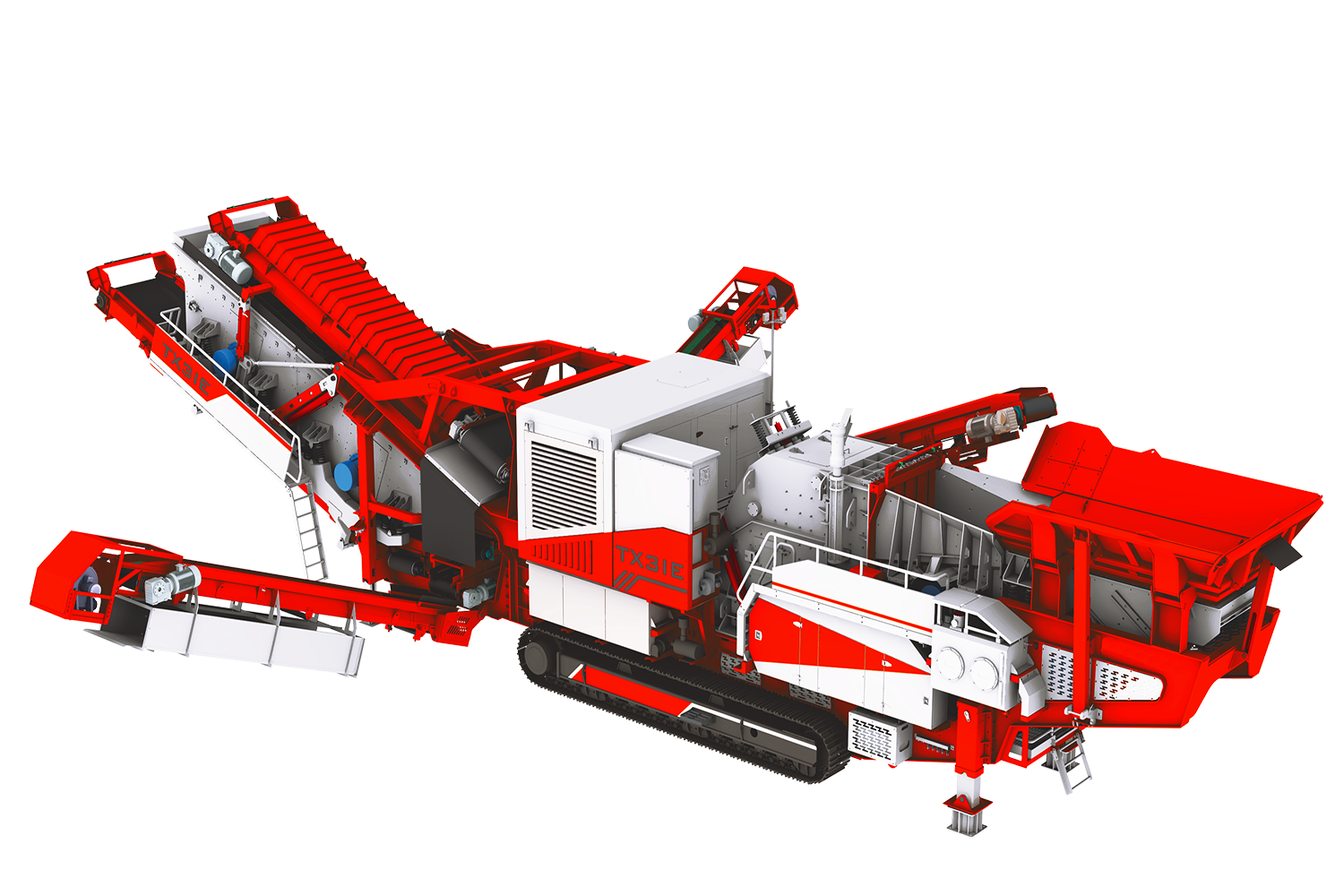

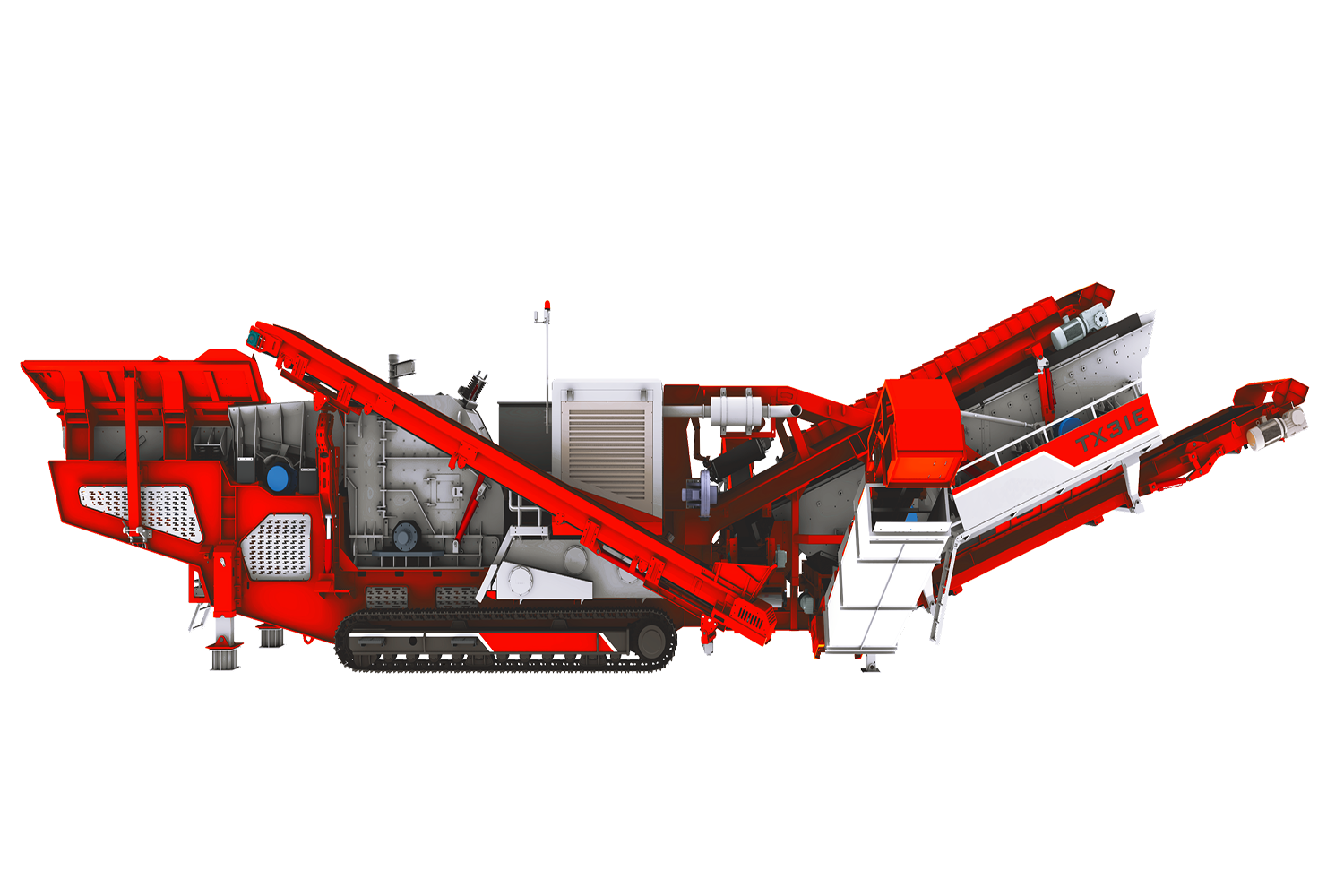

TX3IE is the king of high efficiency in the field of soft rock crushing and screening in crawler movement. It not only integrates three core units of vibration feeder, counterattack crusher and three-layer double-stage screening to achieve the screening of split production line, but also equipped with independent pre-screening device to further improve the crushing efficiency; It has also been upgraded to petrol-electric -hybrid, which can be started with one button on site. It can be widely used in soft rock crushing and screening, construction waste recycling and other fields, which is a key step in the efficient integration of all-in-one machine.
|
Parts/ Configuration |
Model |
|
TX3IE |
|
|
Feeding height（mm） |
4400 |
|
Feeder width×length（mm） |
1160x3022 |
|
Power（kW） |
2x3.7kW |
|
Return screen(double segment) |
|
|
Mesh layer |
3 |
|
Vibrating screen width×length（mm） |
2000x2500/2000x3500 |
|
Power（kW） |
4x6kW |
|
Conveyors |
|
|
Main conveyor width×length（mm） |
1200x13900 |
|
Finished product side conveyor width×length（mm） |
500x6124 |
|
Return conveyor width×length（mm） |
500x9187 |
|
Under screen conveyor width×length（mm） |
1200x7572 |
|
Parameters |
|
|
Total power（kW） |
400.4 |
|
Processing capacity（t/h） |
200-400 |
|
Speed（km/h） |
0.6-1 |
|
Total Weight（t） |
90 |
|
Transportation size length x width x height（mm） |
21012x3966x4000 |
|
The data in this table is for reference only. Specifics are subject to the actual product configuration. |
|
