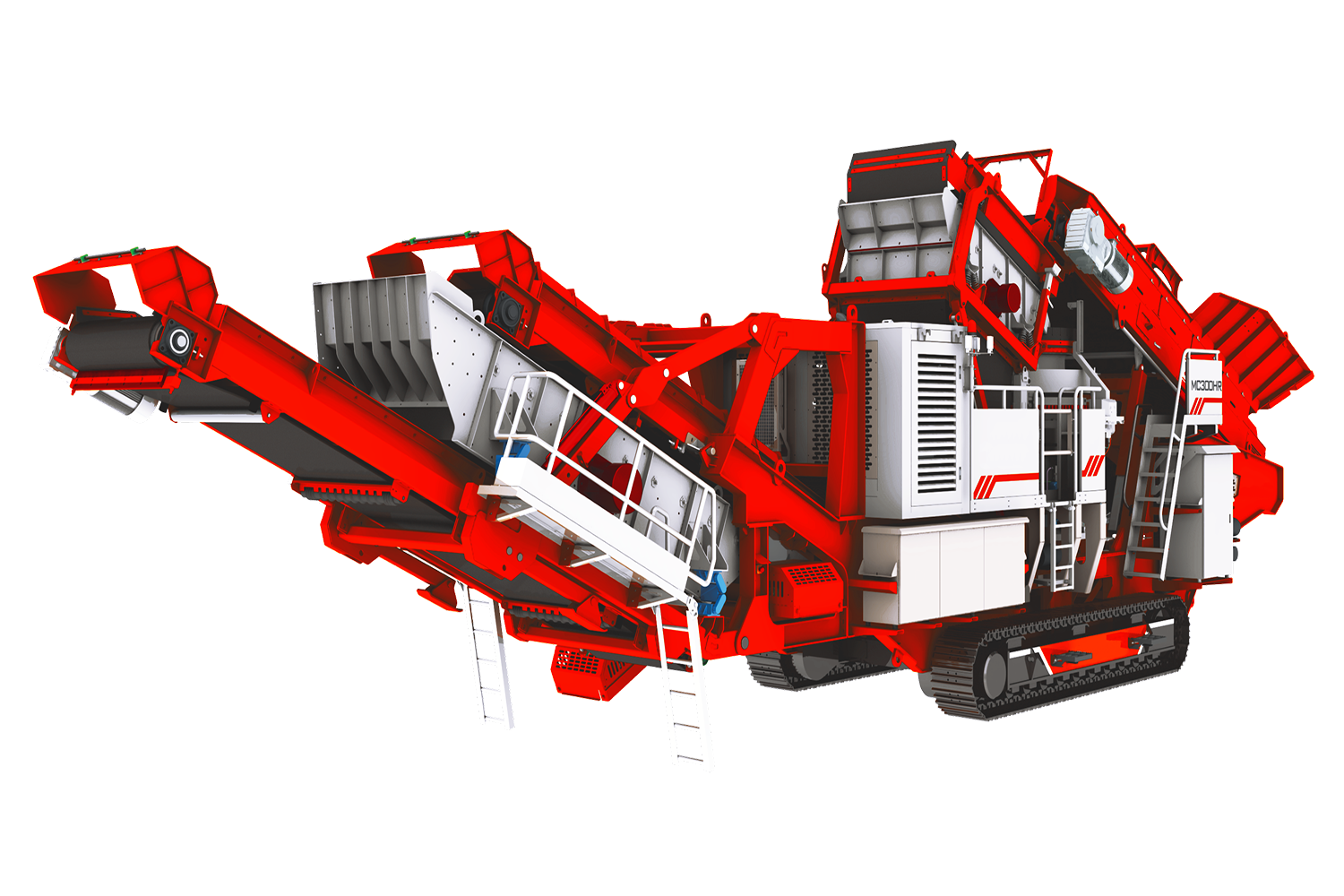

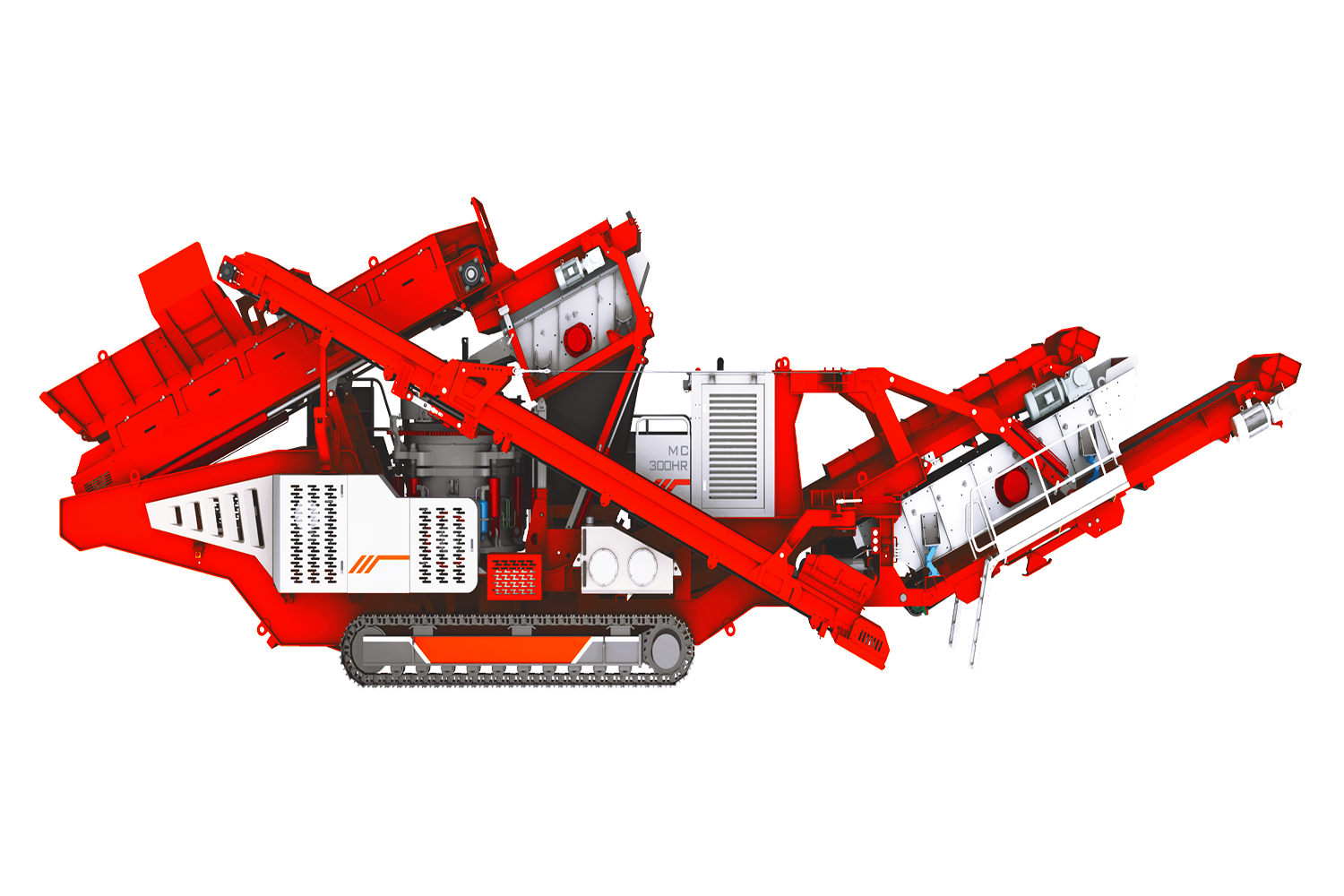

The main machine adopts multi-cylinder cone, laminated crushing, and equipped with large torque and slow speed feeding machine to ensure uniform feeding, mainly for secondary crushing, suitable for medium and high hardness rocks. The compact equipment features convenient relocation, large crushing output, low wear, and high reliability.
|
Parts/ Configuration |
Model |
||||
|
MC-300S |
MC-300SR |
MC-300H |
MC-300HRE |
MC-300HR |
|
|
Volume（m³） |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
|
Feeding height（mm） |
28702870 |
2870 |
2870 |
2870 |
2870 |
|
Max feeding particle size（mm） |
225 |
225 |
225 |
225 |
225 |
|
Processing capacity（t/h） |
500 |
500 |
500 |
500 |
500 |
|
Crusher |
|||||
|
Type |
Single-cylinder |
Single-cylinder |
Multi-cylinder |
Multi-cylinder |
Multi-cylinder |
|
Vibrating screen length×width（mm） |
1540x3600 |
/ |
1540x3600 |
1540x3600 |
|
|
/ |
1 |
/ |
1 |
1 |
|
|
Discharge Range（mm） |
25-54 |
10-45 |
10-45 |
||
|
Main conveyor width（mm） |
1200 |
1200 |
1200 |
1200 |
1200 |
|
Transfer conveyor width（mm） |
500 |
500 |
500 |
500 |
500 |
|
Return conveyor width（mm） |
500 |
500 |
500 |
500 |
500 |
|
Finished product conveyor width（mm） |
1200 |
1200 |
1200 |
1200 |
1200 |
|
Finished conveyor stacking height（mm） |
3419 |
3419 |
3419 |
3419 |
3419 |
|
Total power（kW） |
308.7 |
338.7 |
308.7 |
338.7 |
338.7 |
|
Host power（kW） |
250 |
250 |
250 |
250 |
|
|
Processing capacity（t/h） |
290-495 |
290-495 |
150-430 |
150-430 |
150-430 |
|
Speed（km/h） |
0.6-1 |
0.6-1 |
0.6-1 |
0.6-1 |
|
|
Total Weight（t） |
52 |
57 |
55 |
64 |
60 |
|
Transportation size length x width x height（mm） |
13850x3200x3800 |
18357x3300x3800 |
14850x3200x3800 |
19247x3070x3731 |
19247x3070x3731 |
|
The data in this table is for reference only. Specifics are subject to the actual product configuration. |
|||||
