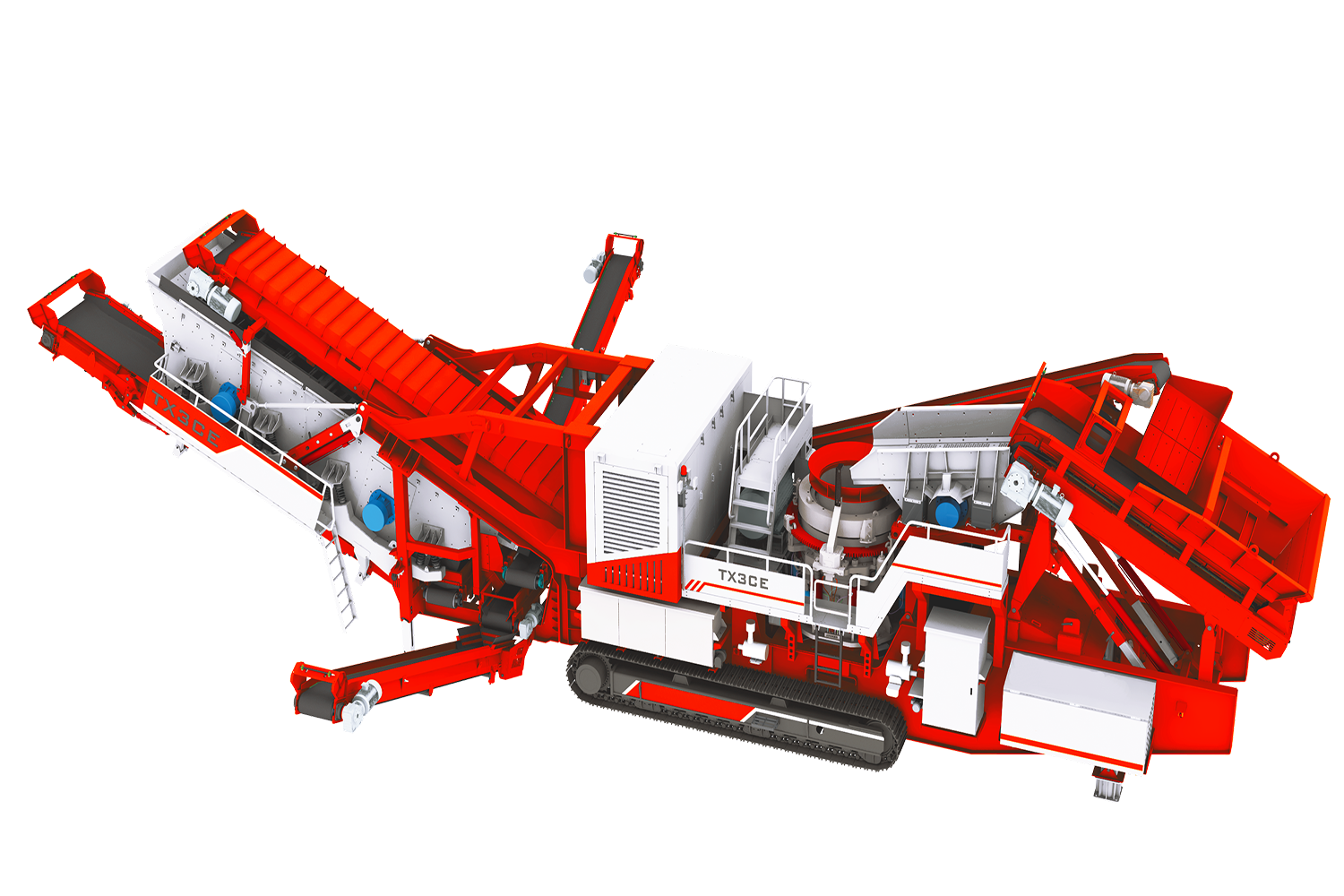

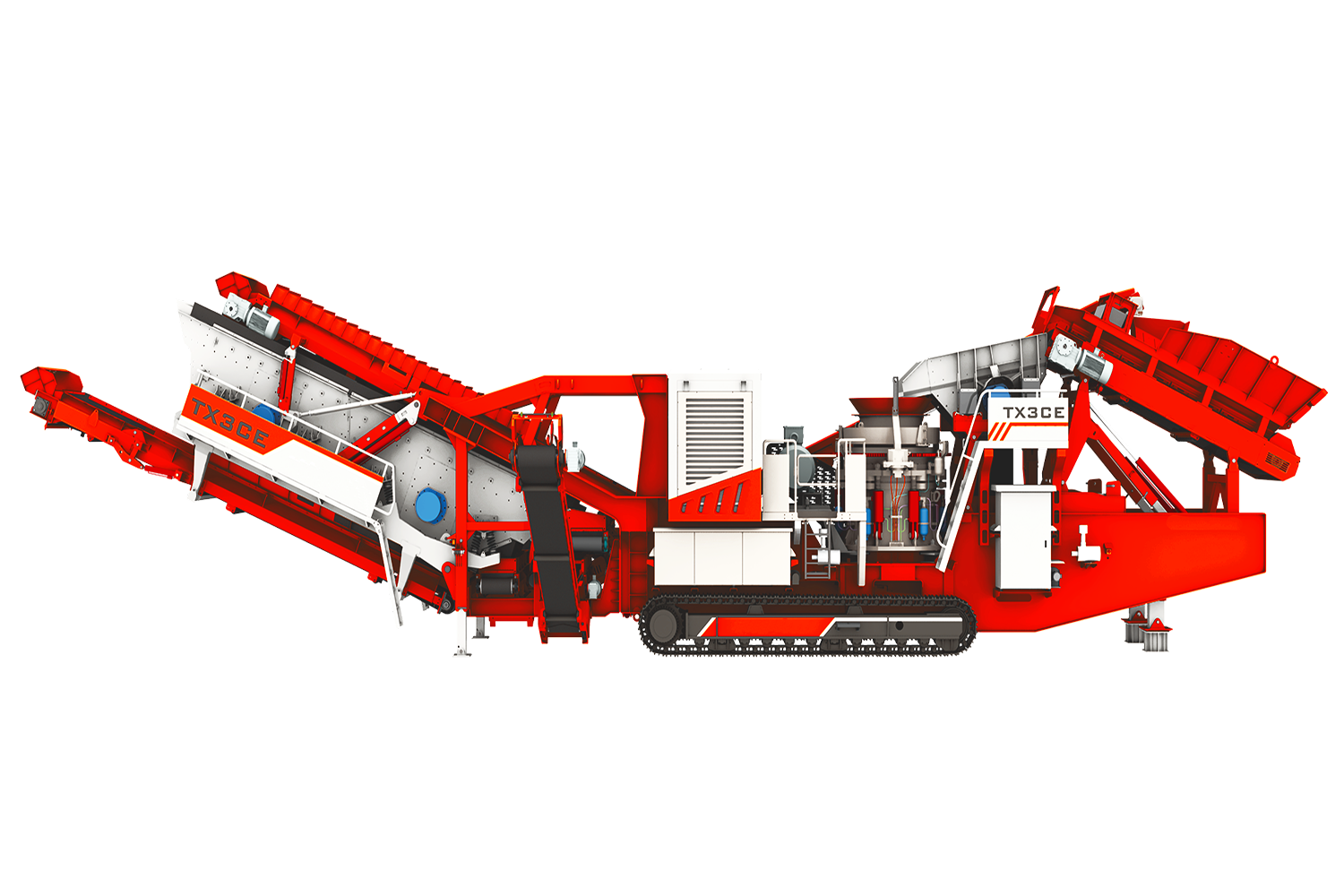

TX3CE is the king of high efficiency in the field of hard rock crushing and screening in crawler movement. It not only integrates the three core units of vibration feeder, cone crusher and three-layer double screen to achieve the screening of split production line, but also equipped with independent pre-screening device to further improve the crushing efficiency; It has also been upgraded to petrol-electric hybrid, which can be started with one button on site. It can be widely used in the crushing and screening of medium and high hardness rock, which is a key step in the efficient integration of the all-in-one machine.
1. Hard rock buster
2. Crushing and screening in one
3. Dual-fuel (oil / electric)
|
Parts/ Configuration |
Model |
|
TX3CE |
|
|
Feeding height（mm） |
3031 |
|
Feeder width×length（mm） |
1200x4055 |
|
Power（kW） |
15kW |
|
Return screen(double segment) |
|
|
Mesh layer |
3 |
|
Vibrating screen width×length（mm） |
2000x2500/2000x3500 |
|
Power（kW） |
4x6kW |
|
Conveyors |
|
|
Main conveyor width×length（mm） |
1200x13890 |
|
Return conveyor width×length（mm） |
500x10745 |
|
Under screen conveyor width×length（mm） |
1200x7572 |
|
Total power（kW） |
350.1 |
|
Processing capacity（t/h） |
150-430 |
|
Speed（km/h） |
0.6-1 |
|
Total Weight（t） |
83 |
|
Transportation size length x width x height (mm） |
22259x4133x4090 |
