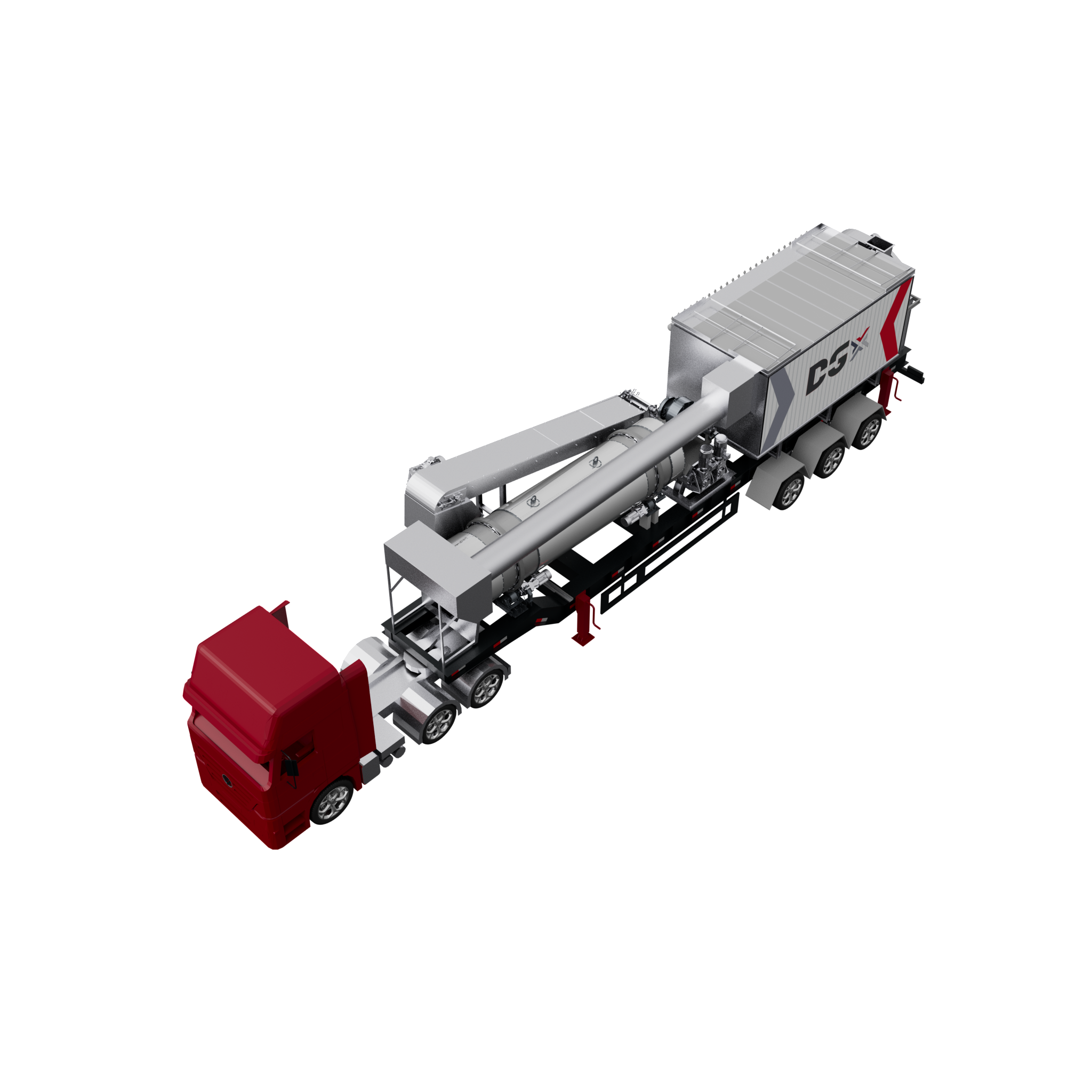

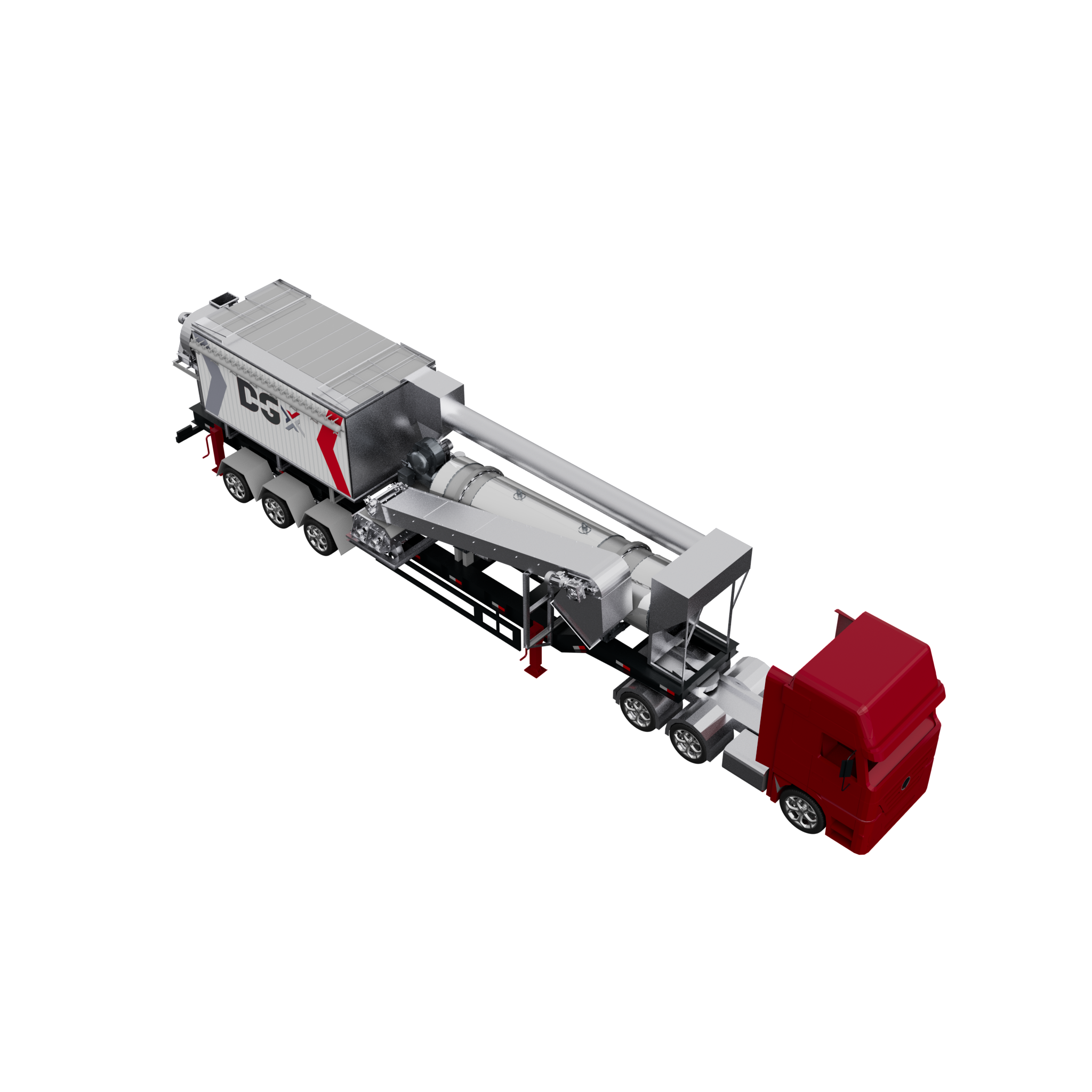

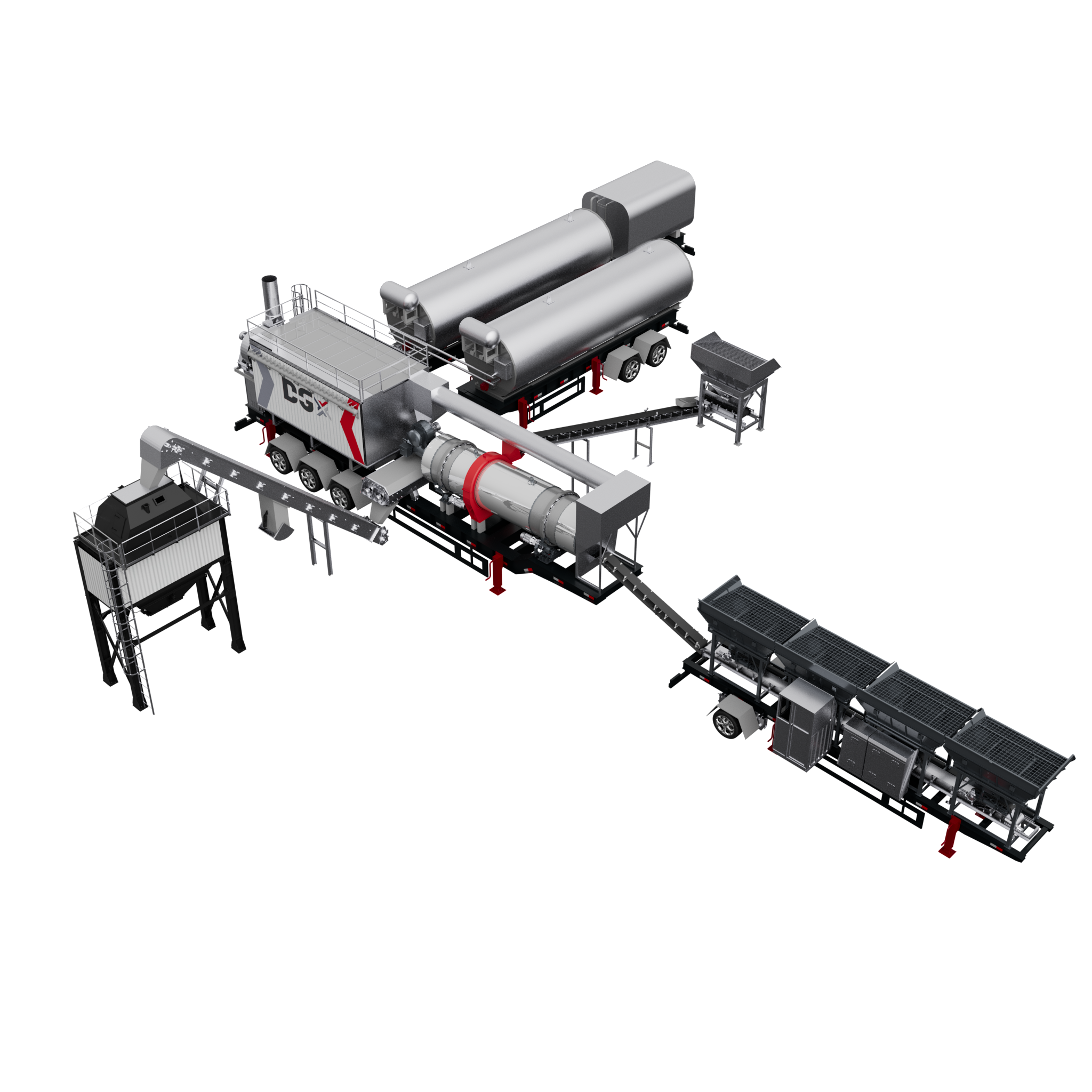

DGMC super mobile continuous asphalt mixing plant is a portable, self-contained unit designed for non-stop production of concrete or stabilized materials directly at project sites. It integrates feeding, weighing, conveying, and continuous mixing systems into a compact frame that can be easily transported and rapidly set up without extensive foundations. Key advantages include high production efficiency due to uninterrupted material flow, consistent mix quality with real‑time adjustment, lower energy consumption compared to batch plants, and exceptional mobility—reducing logistics costs and downtime for multi‑location projects.

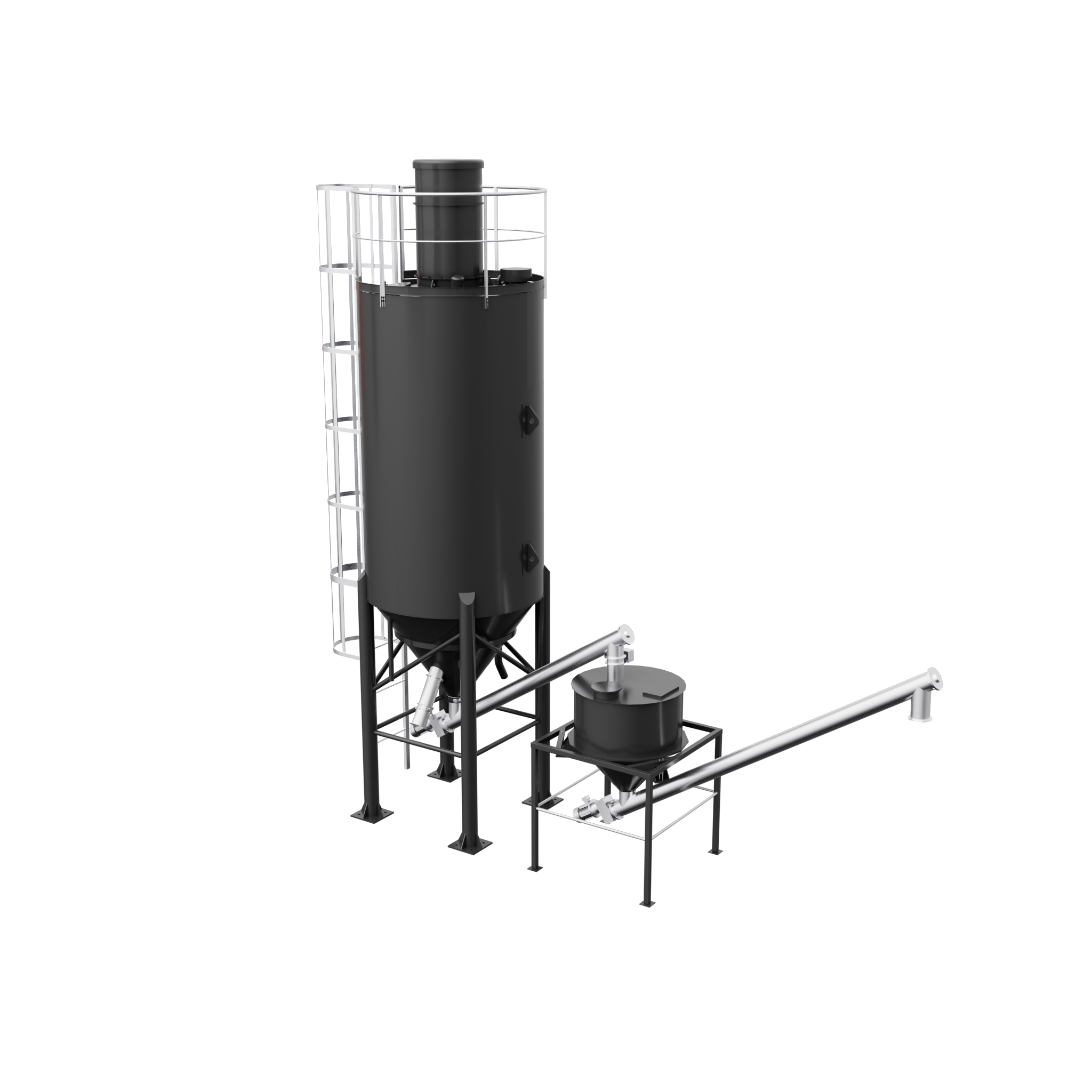

Optional: Dual-weighing: Continuous Fresh Filler Scale with Variable Frequency Screw Conveyor.

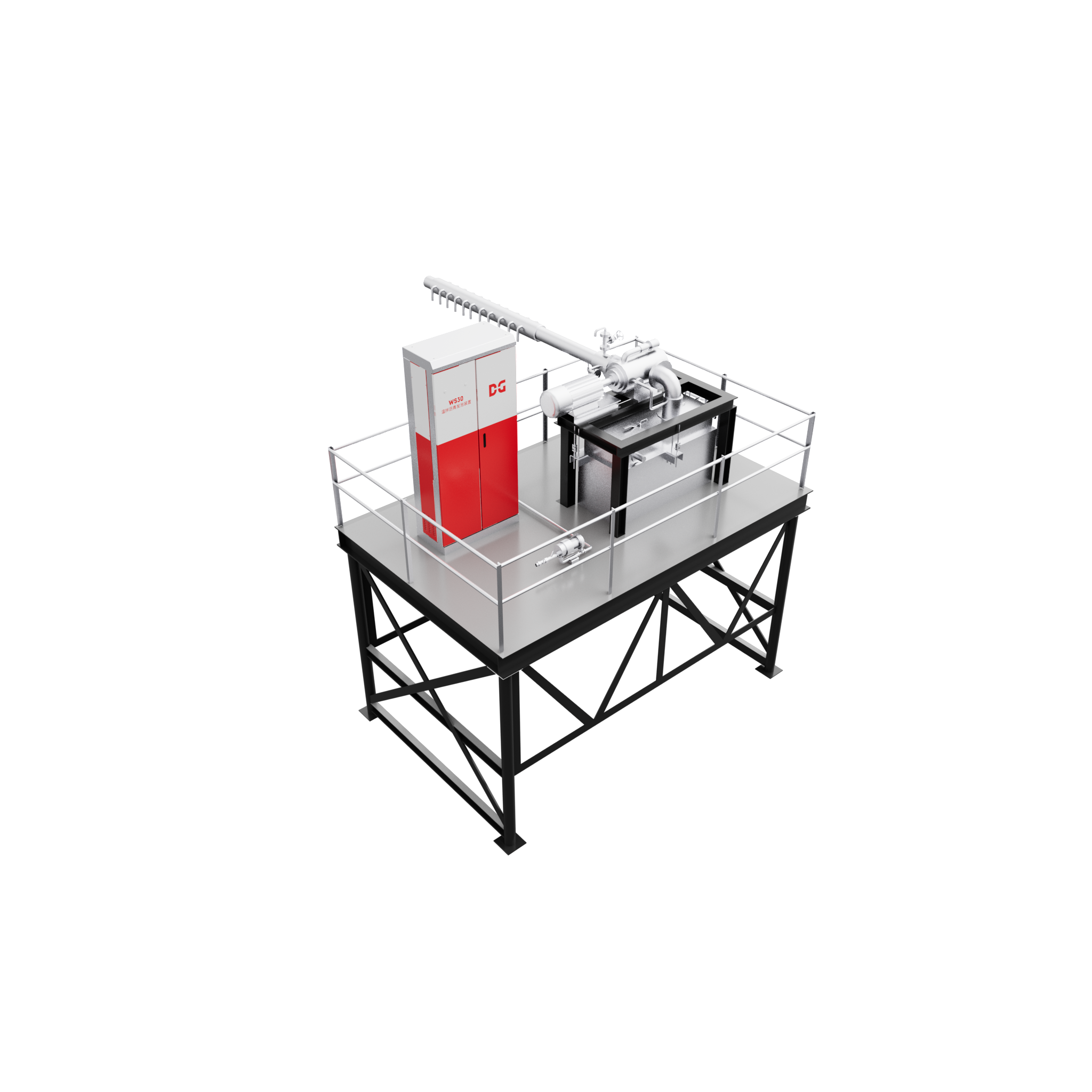

Optional: Patented bitumen circulation pump with weight-reducing scale enables real-time adjustment of the bitumen dosing values based on the actual weighing values of aggregates and fillers.

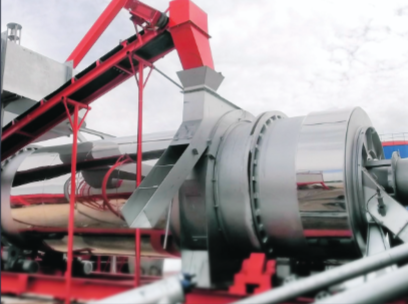

The Dryer Drum can be equipped with Recycling Ring, Max. RAP Addition Ratio: 35%.

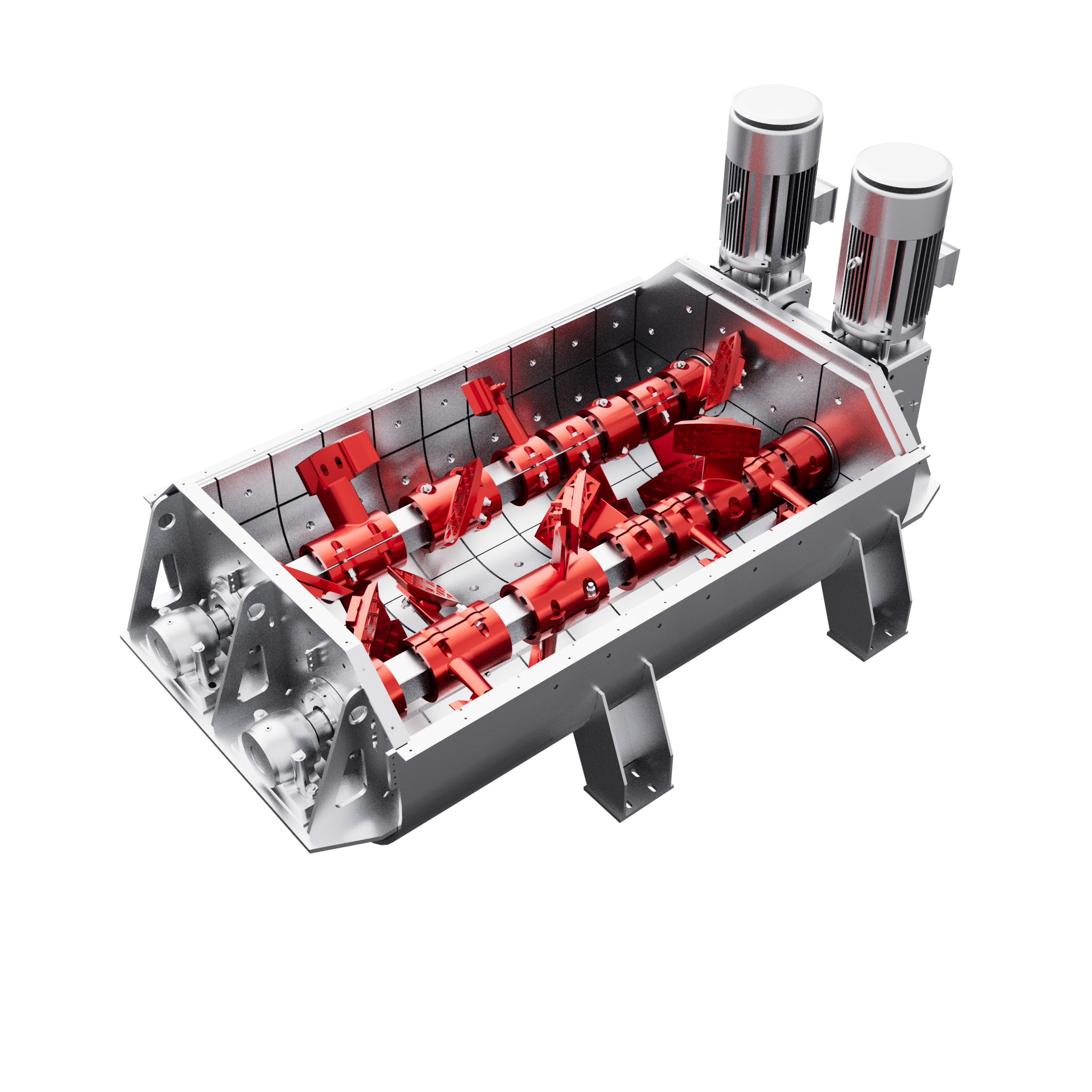

External Continuous Mixer, ensures high efficiency and uniformity of mixture.
Touch screen with DGLeap automatic control system + PLC control.
1) Circulating pump to control the bitumen flow.

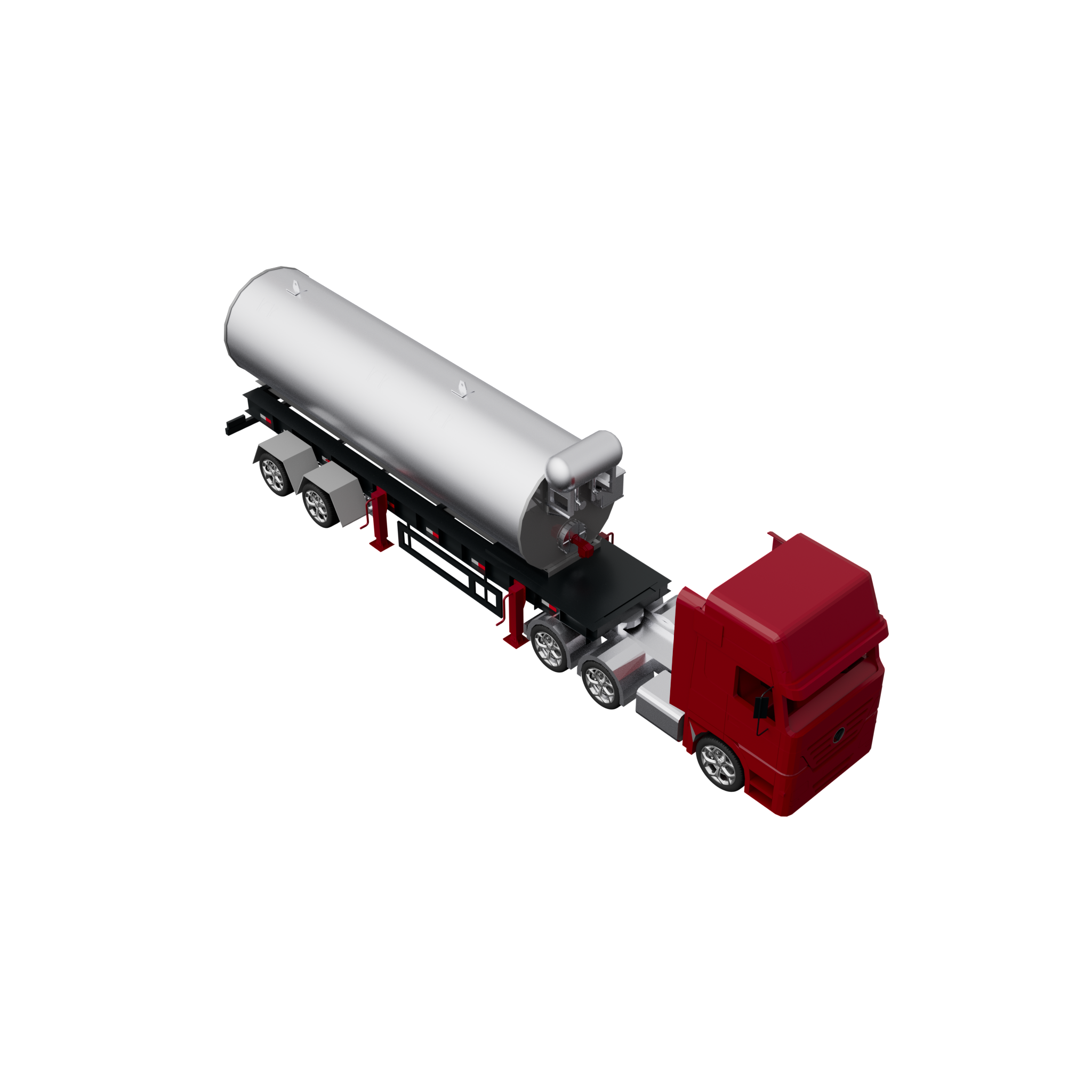

2) Quantity of bitumen tank is changeable.

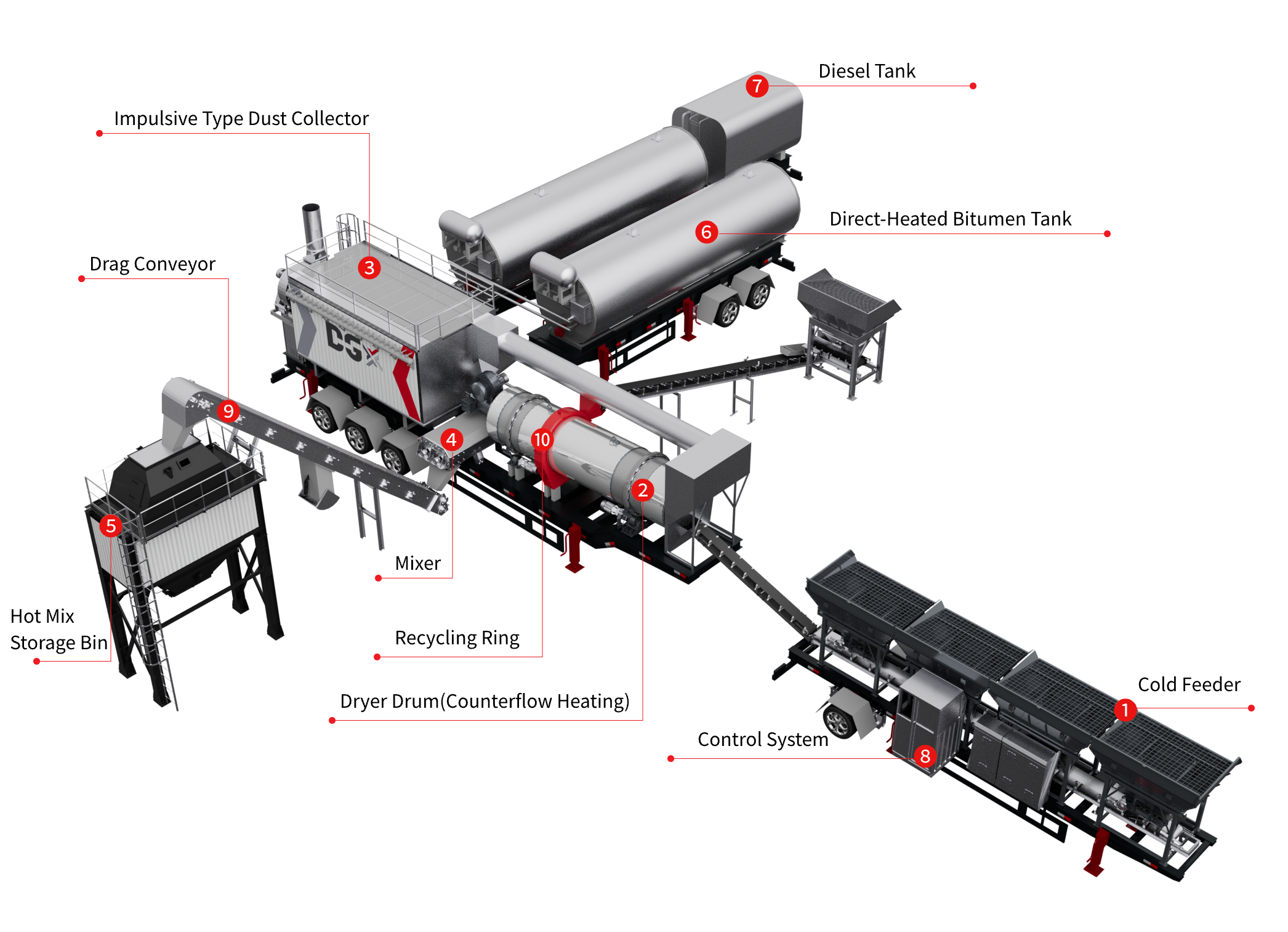

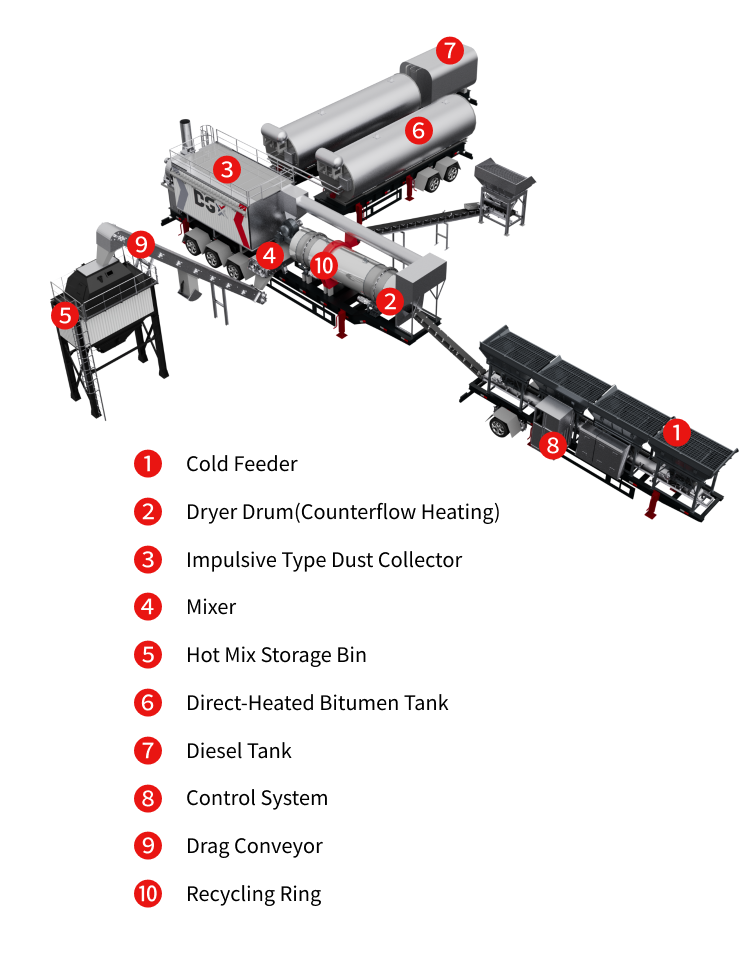

| SPECIFICATION | |||
| Model Series | DGMC 1000 | DGMC 1500 | DGMC 2000 |
| Capacity (Moisture Content≤5%） | 60-80 tph | 100-120 tph | 140-160 tph |

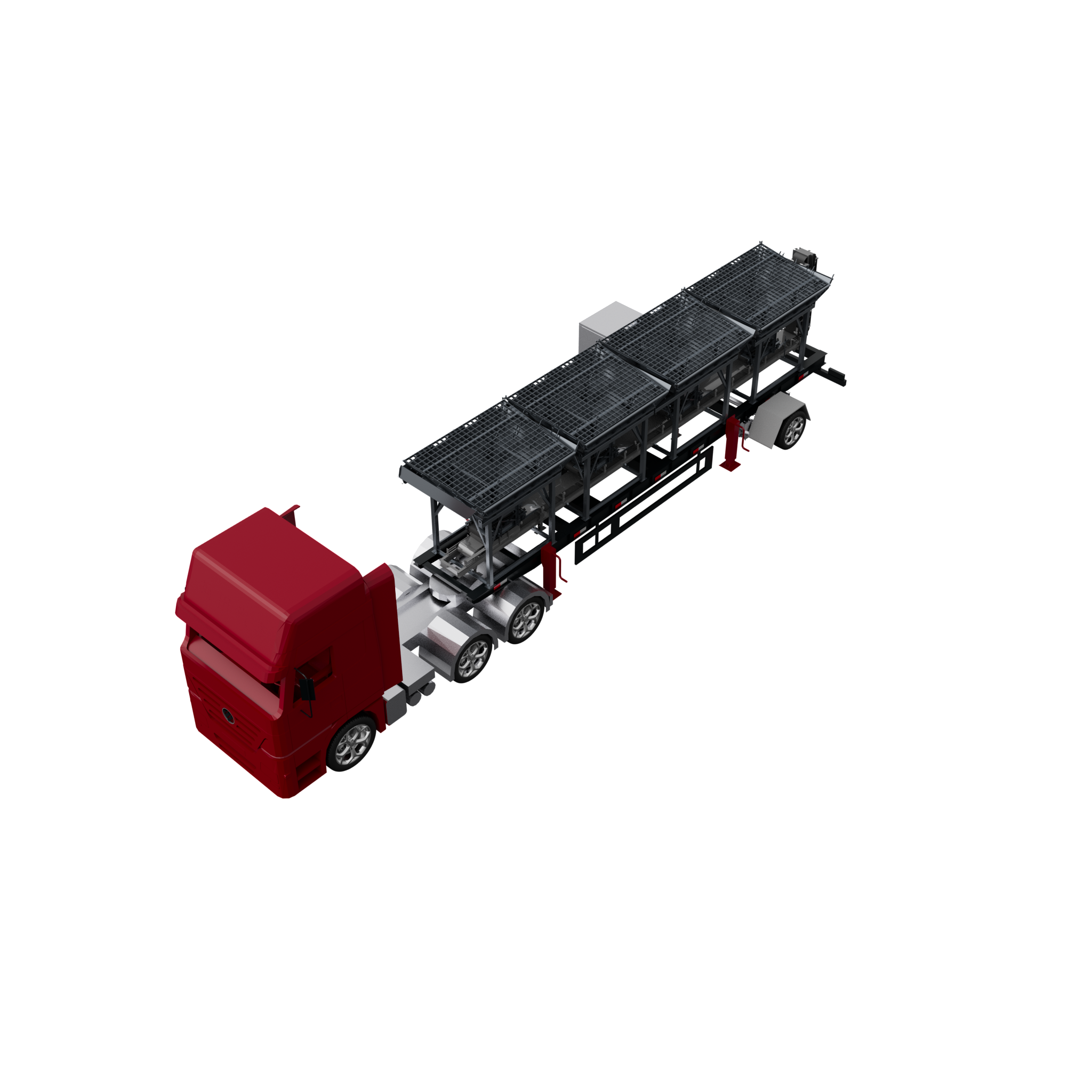

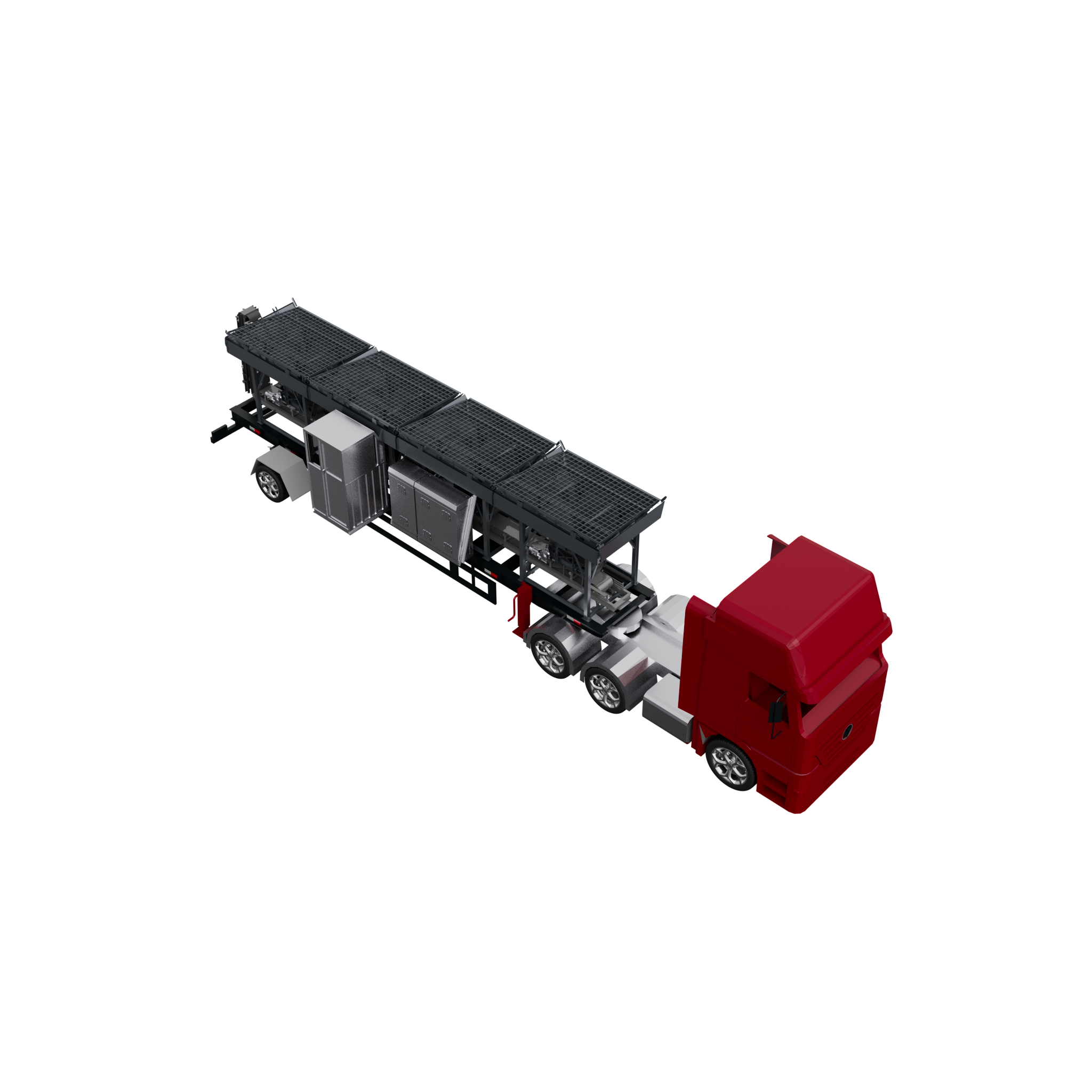

| Cold Feeder | 4×6.5m³ | 4×8m³ | 4 or 5×8m³ |
| Dryer Drum (Counterflow Heating) | Ø 1.6×7.0m | Ø 1.9×7.5m | Ø 2.0×8.0m |
| Burner | Diesel/Heavy Oil/Natural Gas | ||
| Impulsive Type Dust Collector | 330㎡ | 380㎡ | 460㎡ |
| Mixer | External Continuous Mixer | ||
| Aggregate Weighing | Continuous Belt Scale+Conveyor Drum or Belt Speed Calibration | ||
| Reclamed Filler Weighing | VFD Weighing Screw | ||
| Bitumen Weighing | VFD Pump + Continuous Flowmeter, Double Calibration Weighing, Multi-points Force Spraying | ||
| Drag Conveyor | Drag Conveyor with 1.5m³ Drag Feeder | ||
| Direct-heated Bitumen Tank | 35000L×1 | 35000L×1 | 35000L×2 |
| Diesel Tank | 10000L×1 | 10000L×1 | 10000L×1 |
| Control System | Automatic Computer Control (PLC Control),Ethernet Communication, with Air Conditioner | ||
| Mobile Chassis Qty.（Standard) | 2 | 2 | 2 |
| Optional: | |||
| Recycling Ring | The Dryer Drum can be equipped with Recycling Ring, Max. RAP Addition Ratio: 35%. | ||
| RAP Cold Feeder | 1×10m³ | 1×10m³ | 1×10m³ |
| Fresh Filler Silo | 10m³ | 10m³ | 15m³ |
| Weighing System | Continuous Fresh Filler Scale, Continuous Weighing Bitumen Scale | ||
| Warm-mix System | Warm-mix Foaming System | ||
| Mobile Chassis | Optional for Bitumen Tank/ Fuel Tank | ||
